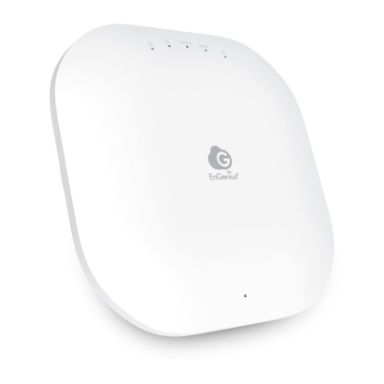

Cablenet ECW120 wireless access point 867 Mbit/s White Power over Ethernet (PoE)
In Stock
|
$181.31
$217.57 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
867 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Transmitting power
23 dBmW
Reset button
Yes
Spread spectrum method
DSSS, OFDM
Frequency band
2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates
10,100,1000 Mbit/s
Certification
FCC, CE, IC
Maximum data transfer rate
867 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Wireless LAN features
Frequency band
2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Network
Spread spectrum method
DSSS, OFDM
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x
Security
Cable lock slot
Yes
Number of SSID supported
8
Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, SSH, WPA, WPA-AES, WPA-EAP, WPA-TKIP, WPA2
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Certificates
Certification
FCC, CE, IC
Features
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Transmitting power
23 dBmW
Spread spectrum method
DSSS, OFDM
Frequency band
2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
867 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
400 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Fit AP mode features
Mesh networking
Virtual LAN features
Tagged VLAN
Protocols
Management protocols
SNMP
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Power
Power consumption (max)
12 W
Power over Ethernet (PoE)
Yes
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Certification
FCC, CE, IC
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
5 dBi
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Technical details
Transmitting power
23 dBmW
Reset button
Yes
Harmonized System (HS) code
85176990
Indication
LED indicators
Yes
Weight & dimensions
Width
161.5 mm
Depth
161.5 mm
Weight
362.8 g
Height
41.5 mm
Packaging data
Quick start guide
Yes
Mounting kit
Yes
AC adapter included
Yes
Packaging content
Quick start guide
Yes
Mounting kit
Yes
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 80 °C
Logistics data
Harmonized System (HS) code
85176990
Cablenet ECW120 wireless access point 867 Mbit/s White Power over Ethernet (PoE)
