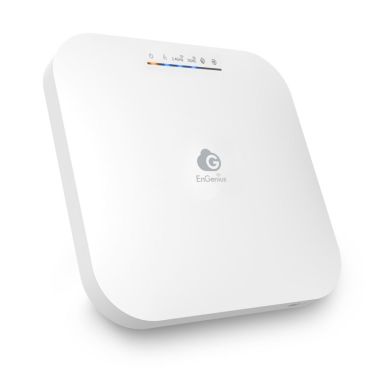

Cablenet ECW220S wireless access point 1200 Mbit/s White Power over Ethernet (PoE)
In Stock
|
$530.58
$636.70 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1774 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Reset button
Yes
Spread spectrum method
DSSS
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Certification
CE, FCC
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Built-in processor
Yes
Processor model
ARM Cortex-A53
Processor frequency
2000 MHz
Network
Spread spectrum method
DSSS
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at
Security
Cable lock slot
Yes
Number of SSID supported
8
Security algorithms
SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK
MAC address filtering
Yes
Wireless Intrusion Detection System (WIDS)
Yes
Service Set Identifier (SSID) features
Hidden SSID, Multiple SSIDs
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Certificates
Certification
CE, FCC
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Spread spectrum method
DSSS
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1774 Mbit/s
Bluetooth
Yes
Bluetooth version
5.0
Dynamic Frequency Selection (DFS)
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Virtual LAN features
Tagged VLAN
Bluetooth Low Energy (BLE)
Yes
BeamForming
Yes
Built-in processor
Yes
Processor model
ARM Cortex-A53
Processor frequency
2000 MHz
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (max)
12.8 W
Power over Ethernet (PoE)
Yes
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
Bluetooth, LAN, Power, WLAN
Certification
CE, FCC
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
5 dBi
Antenna direction type
Omni-directional
Technical details
Reset button
Yes
Processor
Built-in processor
Yes
Indication
LED indicators
Bluetooth, LAN, Power, WLAN
Software
Dynamic Frequency Selection (DFS)
Yes
Weight & dimensions
Width
160 mm
Depth
160 mm
Weight
430 g
Height
33.2 mm
Package width
205 mm
Package depth
205 mm
Package height
83 mm
Package weight
580 g
Packaging data
Quick start guide
Yes
Mounting kit
Yes
Package width
205 mm
Package depth
205 mm
Package height
83 mm
Package weight
580 g
Number of products included
1 pc(s)
Packaging content
Quick start guide
Yes
Mounting kit
Yes
Number of products included
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 80 °C
Cablenet ECW220S wireless access point 1200 Mbit/s White Power over Ethernet (PoE)
