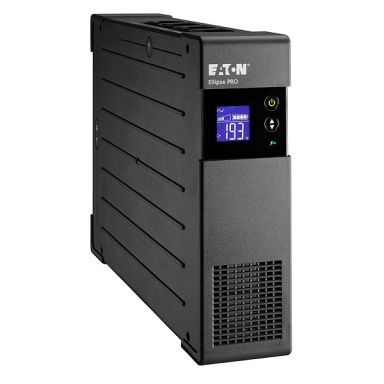

Eaton Ellipse PRO 1200 DIN uninterruptible power supply (UPS) Line-Interactive 1200 VA 750 W 8 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output power
750 W
Input operation voltage (min)
150 V
Input operation voltage (max)
285 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Emergency Power Off (EPO)
Yes
Output power capacity
1200 VA
Performance
UPS topology
Line-Interactive
LED indicators
Yes
Surge protection
Yes
Surge protection features
FaxModemNetworkTelephone
Features
Output frequency
50 Hz
UPS topology
Line-Interactive
Output power
750 W
Input operation voltage (min)
150 V
Input operation voltage (max)
285 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge protection
Yes
Surge protection features
FaxModemNetworkTelephone
Emergency Power Off (EPO)
Yes
Output power capacity
1200 VA
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
AC outlet types
Type F
Power plug
C14 coupler
USB 2.0 ports quantity
1
Modem (RJ-11) ports
1
Ethernet LAN (RJ-45) ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
9 min
Hot-swap battery
No
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Tower
LED indicators
Yes
Product colour
Black
Display
LCD
Technical details
Output frequency
50 Hz
Weight & dimensions
Weight
9.9 kg
Width
82 mm
Height
275 mm
Depth
390 mm
Certificates
Other features
Nominal input voltage
230 V
Eaton Ellipse PRO 1200 DIN uninterruptible power supply (UPS) Line-Interactive 1200 VA 750 W 8 AC outlet(s)
| Length | 39.00 cm |
| Width | 8.20 cm |
| Height | 27.50 cm |
| Weight | 9.900000 kgs |
