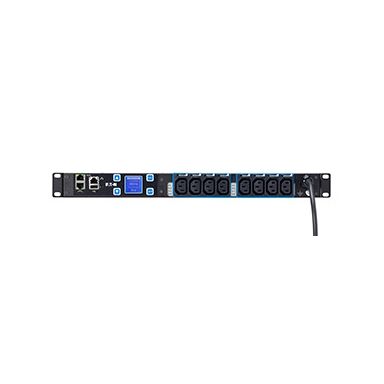

Eaton EMIH28 power distribution unit (PDU) 8 AC outlet(s) 1U Black
In Stock
|
Call For Price
(0808 189 1246)
Design
Type
Single-phase
PDU types
Metered
Mounting
Horizontal
Display
LCD
Product colour
Black
Certification
CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 61000-6-2:2005 Part 6-2, EN 50581 : 2012, REACH, WEEE, PEP, ISO 9001:2008, ISO 14001:2004
Form factor
Rackmount
Rack mounting
Yes
Cable colour
Black
Rack capacity
1U
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C20 coupler
Output connections
8 x C13
Input connection type
IEC-320-C20
Ethernet LAN (RJ-45) ports
1
Features
Cable length
3 m
Certification
CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 61000-6-2:2005 Part 6-2, EN 50581 : 2012, REACH, WEEE, PEP, ISO 9001:2008, ISO 14001:2004
Management features
Supported network protocols
HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS
Management protocols
SNMP, Telnet
Firmware upgradeable via
Network, USB
Firmware upgradeable
Yes
Monitoring
Current
Ergonomics
Cable length
3 m
Display
LCD
Power
Maximum power
3700 W
Nominal input voltage
230 V
Nominal output voltage
230 V
Maximum current
16 A
Maximum input current per phase
16 A
AC input frequency
50 Hz
Weight & dimensions
Dimensions (WxDxH)
203 x 482.6 x 44.45 mm
Weight
2.6 kg
Width
203 mm
Depth
482.6 mm
Height
44.5 mm
Package weight
3.8 kg
Packaging data
Package weight
3.8 kg
Packaging content
Cables included
LAN (RJ-45)
Rack mount kit
Yes
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Technical details
Sustainability certificates
RoHS
Compliance certificates
RoHS
Eaton EMIH28 power distribution unit (PDU) 8 AC outlet(s) 1U Black
