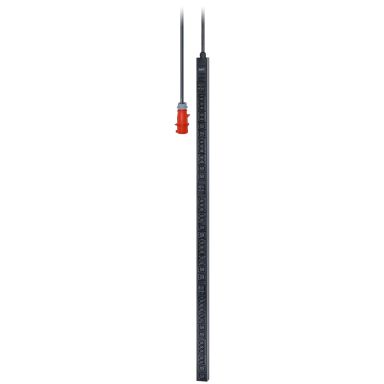

APC EPDU1232B power distribution unit PDU
In Stock
|
Call For Price (0808 189 1246)
Design
Type
Three-phase
PDU types
Basic
Mounting
Vertical
Product colour
Black
Certification
CE, TUV
Rack capacity
0U
Ports & interfaces
AC outlets quantity
42 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
IEC 60309
Features
Cable length
2 m
Certification
CE, TUV
Ergonomics
Cable length
2 m
Power
Maximum power
22000 W
Nominal input voltage
400 V
Nominal output voltage
230 V
Maximum current
32 A
Maximum input current per phase
32 A
Load capacity
22080 VA
AC input frequency
50 - 60 Hz
Weight & dimensions
Weight
5.14 kg
Width
62 mm
Depth
44 mm
Height
1794 mm
Package width
160 mm
Package depth
110 mm
Package height
1950 mm
Package weight
6.2 kg
Packaging data
Package width
160 mm
Package depth
110 mm
Package height
1950 mm
Package weight
6.2 kg
Packaging content
Manual
Yes
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Total carbon footprint (kg of CO2e)
127.67
APC EPDU1232B power distribution unit PDU
| Length | 11 cm |
| Width | 16 cm |
| Height | 195 cm |
| Weight | 6.10 kgs |
