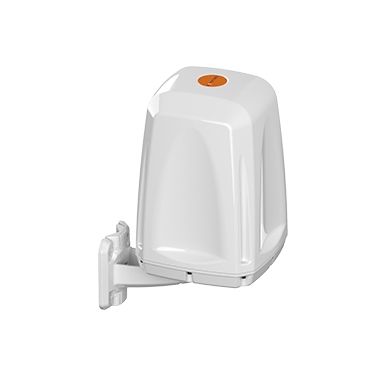

Poynting A-EPNT-0004-V1-15 network antenna Omni-directional antenna SMA 21 dBi
In Stock
|
Call For Price
(0808 189 1246)
Performance
Antenna gain level (max)
21 dBi
Frequency band
0.617 - 4.2 GHz
Impedance
50 ?
Features
Ultraviolet (UV) resistant
Yes
Survival wind speed
220 km/h
Protection features
Dust resistant, Water resistant
Maximum cable loss with connectors
0.71 dB
Housing material
Acrylonitrile styrene acrylate (ASA)
International Protection (IP) code
IP67
Connector gender
Male
Antenna gain level (max)
21 dBi
Frequency band
0.617 - 4.2 GHz
Antenna type
Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)
3:1
Purpose
Indoor & outdoor
Power handling
10 W
Mounting
Wall/Pole
Impedance
50 ?
Product colour
White
Certification
MIL-STD 810G/ASTM B117
Cable type
RTK-031
Cable length
0.15 m
Antenna connector type
SMA
Power
Power source type
DC
Input voltage
2.7 - 3.3 V
Technical details
Antenna gain level (max)
21 dBi
Frequency band
0.617 - 4.2 GHz
Antenna type
Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)
3:1
Purpose
Indoor & outdoor
Power handling
10 W
Mounting
Wall/Pole
Impedance
50 ?
Cable type
RTK-031
Cable length
0.15 m
Antenna connector type
SMA
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Colour
Product colour
White
Certificates
Certification
MIL-STD 810G/ASTM B117
Operational conditions
Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Package width
280 mm
Package depth
200 mm
Package height
405 mm
Package weight
2.19 kg
Weight
1.18 kg
Width
238 mm
Depth
182 mm
Height
351 mm
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Quantity per pack
1 pc(s)
Poynting A-EPNT-0004-V1-15 network antenna Omni-directional antenna SMA 21 dBi
