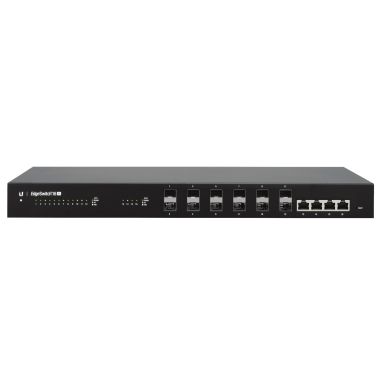

Ubiquiti ES-16-XG Managed 10G Ethernet Switch Black
In Stock
|
Call For Price
(0808 189 1246)
Management features
Device Type
Switch - 16 ports - L3 - managed
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T10GBASE-T100BASE-T1000BASE-T
SFP+ module slots quantity
12
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45
Power connector
DC-in jack
Networking
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T10GBASE-T100BASE-T1000BASE-T
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
255
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Tagged VLANPort-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
255
Virtual LAN features
Tagged VLANPort-based VLAN
Data transmission
Number of VLANs
255
Throughput
238.1 Mpps
MAC address table
8000 entries
Switching capacity
320 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Power
Input voltage
16 - 25 V
Power connector
DC-in jack
Power consumption (max)
36 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Technical details
Form factor
1U
Product colour
Black
Housing material
Steel
Rack mounting
Yes
Security
Authentication
Port-based authentication
SSH/SSL support
Yes
Security algorithms
SNMPSSHSSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Certificates
Certification
CE FCC IC
Design
Form factor
1U
Product colour
Black
LED indicators
ActivityLinkSpeed
Housing material
Steel
Certification
CE FCC IC
Rack mounting
Yes
Indication
LED indicators
ActivityLinkSpeed
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
17.4" (443 mm)
Depth
8.7" (221 mm)
Height
1.69" (43 mm)
Weight
5.97 lbs (2.71 kg)
Packaging data
Rack mount kit
Yes
Other features
Input voltage
16 - 25 V
Packaging content
Rack mount kit
Yes
Ubiquiti ES-16-XG Managed 10G Ethernet Switch Black
| Length | 22.10 cm |
| Width | 44.30 cm |
| Height | 4.30 cm |
| Weight | 2.710000 kgs |
