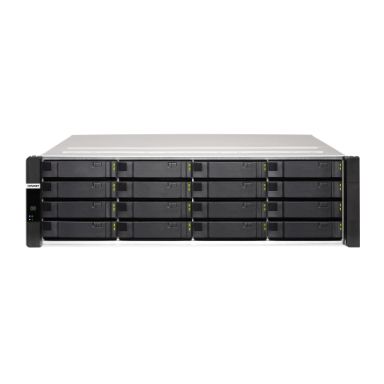

QNAP ES1686dc D-2142IT Ethernet LAN Rack (3U) Black NAS
In Stock
|
Call For Price
(0808 189 1246)
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
16
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
ZFS
RAID levels
0-1-5-6-10-50-60
Supported storage drive interfaces
Serial ATA III- Serial Attached SCSI (SAS)
Storage drive sizes supported
2.5-3.5"
Number of M.2 (M & B) slots
2
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
65 W
Stepping
M1
Scalability
1S
Processor threads
16
Processor socket
FCBGA2518
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Skylake
Processor code
SR3ZZ
Processor cache
11 MB
Processor boost frequency
3 GHz
PCI Express slots version
3.0
CPU configuration (max)
1
Bus type
UPI
Maximum internal memory supported by processor
512 GB
Conflict-Free processor
Yes
Processor ARK ID
136432
Processor frequency
1.9 GHz
Processor family
Intel® Xeon® D
Processor model
D-2142IT
Processor cores
8
Memory
Internal memory type
DDR4
Internal memory
48 GB
Maximum RAM supported
512 GB
Memory slots
8x R-DIMM/LR-DIMM
Flash memory
4000 MB
Network
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Ethernet LAN
Yes
Ethernet LAN data rates
1000-10000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
Supported network protocols
TCP/IP- IPv4- IPv6- CIFS/SMB2/SMB3- NFS v3/NFS v4- FTP- FTPS- TFTP- HTTP- HTTPS- SSH- iSCSI- SNMP- SMTP- SMSC
Jumbo frames support
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
PCI Express x8 (Gen 3.x) slots
2
Fiber ports quantity
4
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
3
Hard drive
RAID support
Yes
Supported file systems
ZFS
RAID levels
0-1-5-6-10-50-60
Design
Cooling type
Active
Fan diameter
6 cm
Product colour
Black
Number of fans
3 fan(s)
LED indicators
Power- Status- System
Chassis type
Rack (3U)
Technical details
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
Black
Noise level
55.8 dB
Multilingual support
Yes
LED indicators
Power- Status- System
Chassis type
Rack (3U)
Number of fans
3 fan(s)
Performance
Built-in FTP server
Yes
S.M.A.R.T. support
Yes
Hot spare
Yes
Browser supported
Apple Safari- Google Chrome- Microsoft Internet Explorer- Mozilla Firefox
Type
NAS
Device class
Large Enterprise Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Reset button
Yes
Operating system installed
QNAP Enterprise System
Noise level
55.8 dB
Multilingual support
Yes
Access Control List (ACL)
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
6 cm
Fan voltage
12 V
Number of fans
3 fan(s)
Security
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating system installed
QNAP Enterprise System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
770 W
Fan voltage
12 V
AC input voltage
90 - 264 V
Redundant power supply (RPS) support
Yes
Power consumption (typical)
500.87 W
Number of power supply units
1
Weight & dimensions
Width
483.1 mm
Depth
630.6 mm
Height
132 mm
Weight
25.8 kg
Package weight
32.7 kg
Packaging content
Rack mount kit
Yes
Number of screws
128
Quick installation guide
Yes
Cables included
AC- LAN (RJ-45)
Processor special features
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
32
Intel® Turbo Boost Technology
2.0
Intel® Secure Key
Yes
Intel® OS Guard
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Secure Key Technology version
1.00
Intel QuickAssist Technology
No
Intel Enhanced Halt State
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
Yes
Memory types supported by processor
DDR4-SDRAM
System requirements
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
FCC A (USA)CE ( EN55022 A- EN55024)EN60950BSMIVCCICBLVD
Packaging data
Package weight
32.7 kg
Cables included
AC- LAN (RJ-45)
Other features
Processor ARK ID
136432
QNAP ES1686dc D-2142IT Ethernet LAN Rack (3U) Black NAS
| Length | 63.06 cm |
| Width | 48.31 cm |
| Height | 13.20 cm |
| Weight | 25.800000 kgs |
