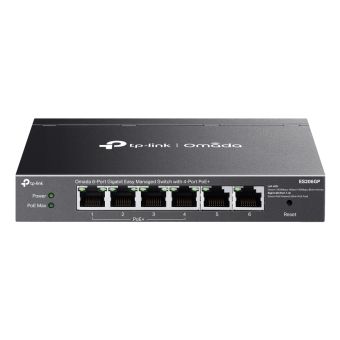

TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
In Stock
|
£53.33
£64.00 (Inc. VAT)
get it next day (UK Mainland Orders)
TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Write Your Own Review
Management features
Reset button
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Unified static configuration
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
6
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
6
Network
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
VLAN support
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Fast leave
Yes
Zero Touch Provisioning (ZTP)
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping
Yes
Optical fiber
Transmission distance (max)
0.25 km
Data transmission
Jumbo frames
15
Packet buffer memory
4 MB
MAC address table
8000 entries
Switching capacity
12 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
7.4 Mpps
Security
Loop protection
Yes
IGMP snooping
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
DHCP features
DHCP client
Design
Wall mountable
Yes
Reset button
Yes
Product colour
Black
LED indicators
Yes
Performance
Firmware upgradeable
Yes
Fanless
Yes
Packet buffer memory
4 MB
Auto-negotiation
Yes
Power
Power supply included
Yes
Surge protection voltage
6 kV
Input current
1.31 A
DC input voltage
53.5 V
Surge protection
Yes
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
65 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Virtual LAN features
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
25 mm
Packaging content
User guide
Yes
AC adapter included
Yes
Packaging data
AC adapter included
Yes
Package type
Box
User guide
Yes
Technical details
Product colour
Black
Firmware upgradeable
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory
4 MB
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Yes
| Length | 10.1 cm |
| Width | 15.8 cm |
| Height | 2.5 cm |
| Weight | 1.00 kgs |
