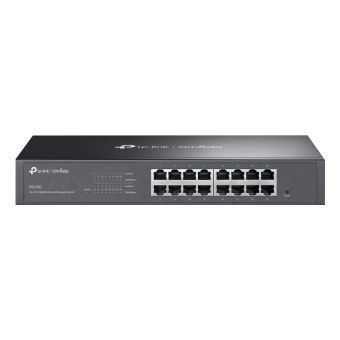

TP-Link Omada ES216G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
In Stock
|
£77.51
£93.01 (Inc. VAT)
get it next day (UK Mainland Orders)
TP-Link Omada ES216G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Write Your Own Review
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Unified static configuration
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
AC-in jack
Network
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
32
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Fast leave
Yes
Zero Touch Provisioning (ZTP)
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping
Yes
Data transmission
Jumbo frames
15000
Packet buffer memory
4 MB
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
23.8 Mpps
Number of VLANs
32
Security
Loop protection
Yes
IGMP snooping
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
DHCP features
DHCP client
Design
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Performance
Mean time between failures (MTBF)
2131140 h
Flash memory
64 MB
Firmware upgradeable
Yes
Fanless
Yes
Packet buffer memory
4 MB
Auto-negotiation
Yes
Power
Power consumption (max)
8.4 W
Power supply included
Yes
Surge protection voltage
6 kV
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Surge protection
Yes
Power source
AC
Power connector
AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
28.52 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
32
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width
294 mm
Depth
140 mm
Height
44 mm
Packaging content
Rack mount kit
Yes
User guide
Yes
Cables included
AC
Packaging data
Package type
Box
Rack mount kit
Yes
User guide
Yes
Cables included
AC
Technical details
Product colour
Black
Mean time between failures (MTBF)
2131140 h
Firmware upgradeable
Yes
Rack mounting
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory
4 MB
Flash memory
64 MB
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Yes
| Length | 14 cm |
| Width | 29.4 cm |
| Height | 4.4 cm |
| Weight | 1.00 kgs |
