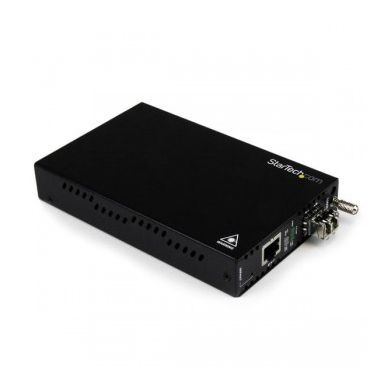

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
In Stock
|
Call For Price
(0808 189 1246)
Network
Fiber optic connector
LC
Converter input interface
1000Base-LX-1000Base-SX-1000Base-T-100Base-TX-10Base-T
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3ah-IEEE 802.3u-IEEE 802.3z
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Duplex system
Full- Half
Converter output interface
1000Base-LX-1000Base-SX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1250 Mbit/s
Technical details
Housing material
Steel
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Internal
No
Sustainability certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
LC
DC-in jack
Yes
Indication
LED indicators
LAN- Link- Power
Performance
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Mean time between failures (MTBF)
65000 h
Design
Housing material
Steel
LED indicators
LAN- Link- Power
Product colour
Black
Certification
FCC- CE
Internal
No
Endurance
Mean time between failures (MTBF)
65000 h
Power
Power over Ethernet (PoE)
No
Input voltage
100 - 240 V
Input current
0.36 A
Output voltage
12 V
Output current
1 A
External power adapter
Yes
Colour
Product colour
Black
Weight & dimensions
Width
87 mm
Depth
163 mm
Weight
411 g
Height
23 mm
Package depth
206 mm
Package width
136 mm
Package height
92 mm
Package weight
789 g
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging data
Package depth
206 mm
Package width
136 mm
Package height
92 mm
Package weight
789 g
Packaging content
Manual
Yes
Certificates
Certification
FCC- CE
StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
