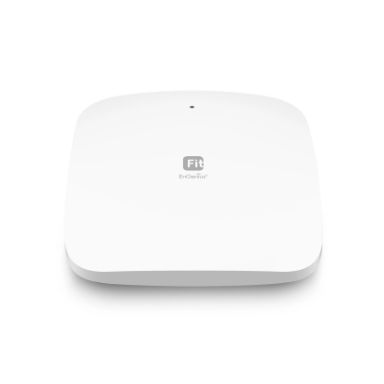

Cablenet EWS357-FIT wireless access point 1200 Mbit/s White Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1774 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Reset button
Yes
Spread spectrum method
DSSS
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af
Ethernet LAN data rates
10,100,1000 Mbit/s
Certification
FCC, CE, IC
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Built-in processor
Yes
Processor model
ARM Cortex-A53
Processor frequency
1000 MHz
Network
Spread spectrum method
DSSS
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af
Security
Cable lock slot
Yes
Number of SSID supported
8
Security algorithms
SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3
MAC address filtering
Yes
Service Set Identifier (SSID) features
Hidden SSID, Multiple SSIDs
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Certificates
Certification
FCC, CE, IC
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Spread spectrum method
DSSS
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Virtual LAN features
Tagged VLAN
BeamForming
Yes
Built-in processor
Yes
Processor model
ARM Cortex-A53
Processor frequency
1000 MHz
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (max)
12.8 W
Output voltage
12 V
Output current
1.5 A
Power over Ethernet (PoE)
Yes
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
LAN, Power, WLAN
Certification
FCC, CE, IC
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
5 dBi
Antenna direction type
Omni-directional
Technical details
Reset button
Yes
Processor
Built-in processor
Yes
Indication
LED indicators
LAN, Power, WLAN
Weight & dimensions
Width
160 mm
Depth
160 mm
Weight
382 g
Height
33.2 mm
Package width
205 mm
Package depth
205 mm
Package height
83 mm
Package weight
580 g
Packaging data
Quick start guide
Yes
Mounting kit
Yes
Package width
205 mm
Package depth
205 mm
Package height
83 mm
Package weight
580 g
Number of products included
1 pc(s)
Packaging content
Quick start guide
Yes
Mounting kit
Yes
Number of products included
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 80 °C
