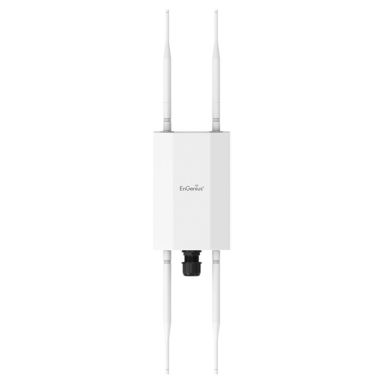

Cablenet EWS850-FIT wireless access point 1200 Mbit/s White Power over Ethernet (PoE)
In Stock
|
$514.71
$617.65 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
1774 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Spread spectrum method
DSSS
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Certification
FCC, CE, IC
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Built-in processor
Yes
Processor model
ARM Cortex-A53
Processor frequency
1800 MHz
Network
Spread spectrum method
DSSS
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Certificates
Certification
FCC, CE, IC
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Spread spectrum method
DSSS
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Maximum data transfer rate
1774 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Virtual LAN features
Tagged VLAN
BeamForming
Yes
Built-in processor
Yes
Processor model
ARM Cortex-A53
Processor frequency
1800 MHz
Security
Number of SSID supported
8
Security algorithms
SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Hidden SSID, Multiple SSIDs
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (max)
15.9 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE
DC voltage range
48 - 54 V
Design
International Protection (IP) code
IP67
Placement
Pole, Wall
Product colour
White
LED indicators
LAN, Power, WLAN
Certification
FCC, CE, IC
Antenna
Antenna type
External
Antennas quantity
4
Antenna gain level (max)
5 dBi
Antenna connector type
SMA
Antenna direction type
Omni-directional
Antenna features
Detachable antenna
Processor
Built-in processor
Yes
Indication
LED indicators
LAN, Power, WLAN
Weight & dimensions
Width
124 mm
Depth
190 mm
Weight
700 g
Height
52.5 mm
Package width
234 mm
Package depth
284 mm
Package height
144 mm
Package weight
1.8 kg
Packaging data
Quick start guide
Yes
Mounting kit
Yes
PoE adapter included
Yes
Package width
234 mm
Package depth
284 mm
Package height
144 mm
Package weight
1.8 kg
Number of products included
1 pc(s)
Packaging content
Quick start guide
Yes
Mounting kit
Yes
PoE adapter included
Yes
Number of products included
1 pc(s)
Antenna included
Yes
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 80 °C
Cablenet EWS850-FIT wireless access point 1200 Mbit/s White Power over Ethernet (PoE)
