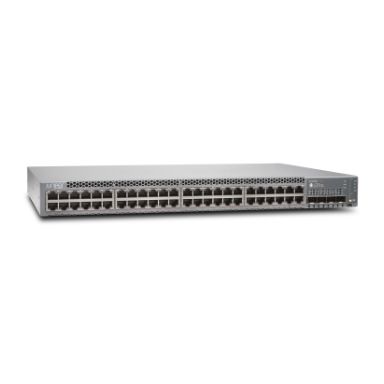

Juniper EX2300-48T network switch Managed L2/L3 Gigabit Ethernet

Juniper EX2300-48T Network Switch Managed L2/L3 Gigabit Ethernet

Designed as an economical, entry-level, standalone network solution for access-layer deployments in branch and remote offices, as well as enterprise campus networks, Juniper EX2300-48T UK is a managed Layer 2/Layer 3 Ethernet switch, featuring scalability, reliability, and operational consistency through the Juniper Junos operating system.

Key Juniper EX2300-48T Specifications:

• 52 (48 host ports + four-port SFP/SFP+ uplinks) port density

• 88 Gbps (unidirectional)/176 Gbps (bidirectional) packet switching capacity

• 130 Mpps (wire speed) Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets)

• Layer 3 Switch

• Rack-mountable form factor

Here is an in-depth description of the Juniper 48-port managed Gigabit switch.

• 48 × 10/100/1000Base-T Access Ports:

This Juniper network switch for business is provided with 48 GbE access-layer ports, providing seamless compatibility and high-speed network connectivity for desktops, servers, IP phones, and other Ethernet devices.

• Uplink Ports:

HPE 10G SFP+ uplink switch is provided with four-port SFP/SFP+ uplinks, allowing network administrators high-speed fiber optics-based connectivity for mission-critical applications.

• High-Capacity L2/L3 Network Switch:

This is an enterprise-grade switch that supports 88 Gbps (unidirectional)/176 Gbps (bidirectional) packet switching capacity, making it a suitable network switch for homes, businesses, small offices, remote locations, challenging environments, industrial use, outdoor Wi-Fi, and a perfect network switch for security cameras.

It also supports:

• 4,093 VLANs

• MAC address table up to ~16,000 entries

•  IPv4 unicast / multicast routing, IPv6 support in management & static routes, et

• Virtual Chassis Technology:

Juniper EX2300-48T is provided with Virtual Chassis Technology that allows network administrators to manage four interconnected EX2300 switches as a single logical device. They can thus enjoy simplified installation and deployment.

• Enhanced Security:

This is an enterprise network switch that acts as an enforcement point in Access Policy Infrastructure, featuring multiple advanced security safeguards. For instance, it supports standards-based 802.1X port-level access control for multiple devices per port and Layer 2-4 policy enforcement based on user identity, location, and device.

Network administrators can deploy users’ identity, device type, machine posture check, and location to determine whether access to the network should be given or not. In this way, they can effectively prevent unauthorized access to the network.

• Layer 2 Features:

• Maximum MAC addresses in hardware: 16,000

• Jumbo frames: 9216 bytes

• Number of VLANs supported: 4093

• Range of possible VLAN IDs: 1-4094

• Port-based VLAN

• MAC-based VLAN

• Voice VLAN

• IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP)

• Compatible with Per-VLAN Spanning Tree Plus (PVST+)

• RVI (Routed VLAN Interface)

• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)

• LLDP-MED with VoIP integration

• IEEE 802.1ad Q-in-Q tunneling

• IEEE 802.1br: Bridge Port Extension

• IEEE 802.1D: Spanning Tree Protocol

• IEEE 802.1p: CoS prioritization

• IEEE 802.1Q: VLAN tagging

• IEEE 802.1Q-in-Q: VLAN Stacking

• IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)

• Number of MST instances supported: 64

• Number of VSTP instances supported: 253

• IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)

• IEEE 802.1X: Port Access Control

• IEEE 802.3: 10BASE-T

• IEEE 802.3u: 100BASE-T

• IEEE 802.3ab: 1000BASE-T

• IEEE 802.3z: 1000BASE-X

• IEEE 802.3af: PoE

• IEEE 802.3at: PoE+

• IEEE 802.3ad: Link Aggregation Control Protocol (LACP)

• IEEE 802.3ah: Ethernet in the First Mile

• Layer 3 Features: IPv4

• Maximum number of ARP entries: 1,500

• Maximum number of IPv4 unicast routes in hardware: 512 prefixes; 4,096 host routes

• Maximum number of IPv4 multicast routes in hardware: 2,048 groups; 2,048 multicast routes

• Routing Protocols: RIP v1/v2, OSPF v1/v2

• Static routing

• Routing policy

• Bidirectional Forwarding Detection (BFD) with slow timers (> 3 sec)

• IP directed broadcast

• Layer 3 Features: IPv6

• Maximum number of Neighbor Discovery (ND) entries: 1,500

• Maximum number of IPv6 unicast routes in hardware: 512 prefixes; 2,048 host routes

• Maximum number of IPv6 multicast routes in hardware: 1,024 groups; 1,024 multicast routes

• Neighbor discovery, system logging, Telnet, SSH, SNMP, Network Time Protocol (NTP), Domain Name System (DNS)

• Static routing

• Routing protocols: RIPng, OSPF v3
