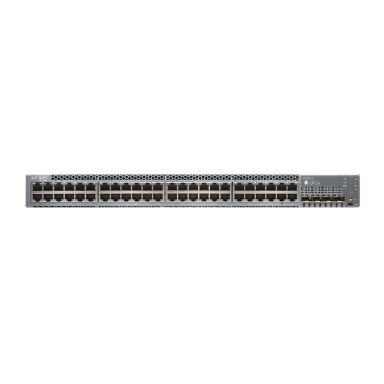

EX3400 48-PORT POE+
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 1155, RFC 1157, RFC 1212, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1212, RFC 1724, RFC 1905, RFC 1981, RFC 2011, RFC 2012, RFC 2013, RFC 2096, RFC 2287, RFC 2328, RFC 2460, RFC 2464, RFC 2570-2575, RFC 2576, RFC 2578, RFC 2579, RFC 2665, RFC 2819, RFC 2863, RFC 2922, RFC 2925, RFC 3413, RFC 3621, RFC 3810, RFC 4188, RFC 4213, RFC 4291, RFC 4363, RFC 4443, RFC 4861, RFC 4862, RFC 5643
Switch layer
L2/L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
SFP+ module slots quantity
4
QSFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4093
Link aggregation
Yes
IP routing
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Virtual LAN features
Port-based VLAN
Data transmission
Number of VLANs
4093
Jumbo frames
9216
Throughput
250 Mpps
MAC address table
32000 entries
Switching capacity
336 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Performance
Stackable
Yes
Virtual stacking (units)
10
Processor frequency
1000 MHz
Noise level
46 dB
Memory type
DRAM
Internal memory
2000 MB
Flash memory
2000 MB
Built-in processor
Yes
Harmonized System (HS) code
85176990
Technical details
Virtual stacking (units)
10
Form factor
1U
Product colour
Black
Stackable
Yes
Processor frequency
1000 MHz
Noise level
46 dB
Rack mounting
No
Built-in processor
Yes
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Security
Authentication
MAC-based authentication, Port-based authentication
Security algorithms
802.1x RADIUS, HTTPS, SNMP, SSH-2
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast support
Yes
Certificates
Safety
UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1
Electromagnetic compatibility
FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, CISPR 22 A, EN 55024, EN 300386, CE
Memory
Memory type
DRAM
Internal memory
2000 MB
Flash memory
2000 MB
Design
Safety
UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1
Form factor
1U
Product colour
Black
Stackable
Yes
Electromagnetic compatibility
FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, CISPR 22 A, EN 55024, EN 300386, CE
Rack mounting
No
Power
Power consumption (max)
120 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
48
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%
Operating altitude
0 - 3048 m
Non-operating altitude
3048 - 4877 m
Weight & dimensions
Width
437 mm
Depth
350 mm
Height
44 mm
Weight
5.74 kg
Logistics data
Harmonized System (HS) code
85176990
EX3400 48-PORT POE+
