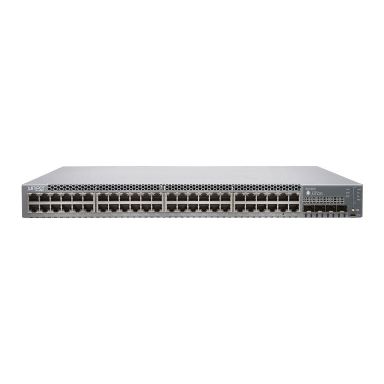

EX3400 48-PORT
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
SFP+ module slots quantity
4
QSFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4093
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Tagged VLAN, Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Virtual LAN features
Tagged VLAN, Port-based VLAN
Data transmission
Number of multicast groups filtered
9000
Number of VLANs
4093
Jumbo frames
9216
Throughput
250 Mpps
MAC address table
32000 entries
Switching capacity
336 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Technical details
Form factor
1U
Product colour
Grey
Processor frequency
1000 MHz
Noise level
35 dB
Rack mounting
Yes
Security
Authentication
Port-based authentication
SSH/SSL support
Yes
Security algorithms
SNMP, SSH-2
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Number of multicast groups filtered
9000
Multicast support
Yes
Protocols
Supported network protocols
HTTP/HTTPs, RIP v1, RIPv2, IPv4, IPv6
Certificates
Safety
UL-UL60950-1, C-UL to CAN/CSA 22.2 No.60950-1 , TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1
Certification
FCC 47CFR Part 15 Class A
EN 55022 Class A
ICES-003 Class A
VCCI Class A
AS/NZS CISPR 22 Class A
CISPR 22 Class A
EN 55024
EN 300386
CE
Memory
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Design
Safety
UL-UL60950-1, C-UL to CAN/CSA 22.2 No.60950-1 , TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1
Form factor
1U
Product colour
Grey
Certification
FCC 47CFR Part 15 Class A
EN 55022 Class A
ICES-003 Class A
VCCI Class A
AS/NZS CISPR 22 Class A
CISPR 22 Class A
EN 55024
EN 300386
CE
Rack mounting
Yes
Performance
Processor frequency
1000 MHz
Noise level
35 dB
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Power
Power consumption (max)
120 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 4877 m
Weight & dimensions
Width
442 mm
Depth
350 mm
Height
44 mm
Weight
5.74 kg
EX3400 48-PORT
