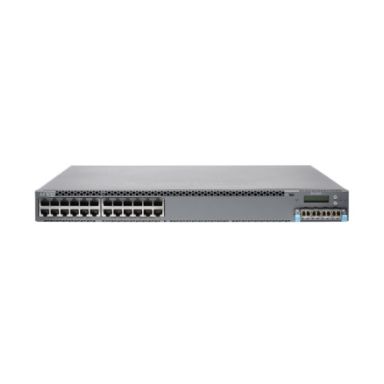

Juniper EX4300-24P network switch Managed Gigabit Ethernet (10/100/1000) 1U Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
System event log
Yes
Quality of Service (QoS) support
Yes
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Installed SFP+ modules quantity
4
Gigabit Ethernet (copper) ports quantity
24
SFP/SFP+ slots quantity
4
Fiber optic connector
QSFP
ExpressCard slot
No
Network
IGMP snooping
Yes
Copper ethernet cabling technology
1000BASE-T
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4093
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Data transmission
Number of VLANs
4093
Throughput
333 Mpps
MAC address table
64000 entries
Switching capacity
448 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Optical fiber
Fiber optic connector
QSFP
Technical details
Form factor
1U
Product colour
Grey
Processor frequency
1.5 MHz
Noise level
39.7 dB
Rack mounting
Yes
Built-in processor
Yes
Security
Static port security
Yes
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Memory
Internal memory
2048 MB
Flash memory
2048 MB
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Number of fans
2 fan(s)
Performance
Processor frequency
1.5 MHz
Noise level
39.7 dB
Internal memory
2048 MB
Flash memory
2048 MB
Built-in processor
Yes
Processor model
PowerPC
Power
Number of power supply units
1
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
550 W
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
442.1 mm
Depth
417.3 mm
Height
43.2 mm
Weight
7.3 kg
Juniper EX4300-24P network switch Managed Gigabit Ethernet (10/100/1000) 1U Power over Ethernet (PoE)
| Length | 41.73 cm |
| Width | 44.21 cm |
| Height | 4.32 cm |
| Weight | 7.300000 kgs |
