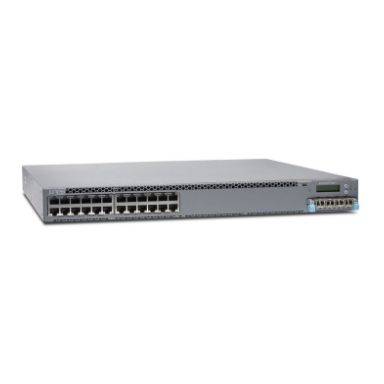

EX4300,24PRT 10/100/1000BASET+350W AC PS
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
System event log
Yes
Quality of Service (QoS) support
Yes
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T
QSFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
SFP/SFP+ slots quantity
4
Fiber optic connector
QSFP
ExpressCard slot
No
Network
IGMP snooping
Yes
Copper ethernet cabling technology
1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4093
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4093
Data transmission
Number of VLANs
4093
Throughput
333 Mpps
MAC address table
64000 entries
Switching capacity
448 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Optical fiber
Fiber optic connector
QSFP
Technical details
Form factor
1U
Product colour
Grey
Processor frequency
1.5 MHz
Noise level
38.5 dB
Rack mounting
Yes
Built-in processor
Yes
Security
Static port security
Yes
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast support
Yes
Memory
Internal memory
2048 MB
Flash memory
2048 MB
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Number of fans
2 fan(s)
Performance
Processor frequency
1.5 MHz
Noise level
38.5 dB
Internal memory
2048 MB
Flash memory
2048 MB
Built-in processor
Yes
Processor model
PowerPC
Power
Redundant power supply (RPS) support
Yes
Number of power supply units
1
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%
Operating altitude
0 - 3049 m
Non-operating altitude
0 - 4877 m
Weight & dimensions
Width
442.1 mm
Depth
417.3 mm
Height
43.2 mm
Weight
7.3 kg
Packaging data
User guide
Yes
Manual
Yes
Packaging content
User guide
Yes
Manual
Yes
EX4300,24PRT 10/100/1000BASET+350W AC PS
