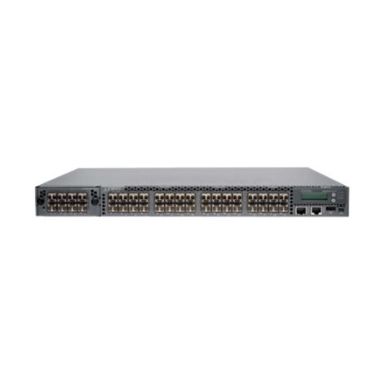

EX4550 32-SFP+ Port Chassis, NO PSU NO FANS
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Traffic classification
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L3
Network
IGMP snooping
Yes
Cable types supported
Fiber
Networking standards
IEEE 802.1Qbb, IEEE 802.1p
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4096
Link aggregation
Yes
IP routing
Yes
10G support
Yes
Auto-negotiation
Yes
Virtual LAN features
Tagged VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Virtual LAN features
Tagged VLAN
Data transmission
Multicast MAC address table
4000 entries
Number of VLANs
4096
Jumbo frames
9216
Throughput
714 Mpps
MAC address table
32000 entries
Switching capacity
960 Gbit/s
Jumbo frames support
Yes
Performance
Stackable
Yes
Auto-negotiation
Yes
Expansion module support
Yes
Processor frequency
1200 MHz
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Firmware upgradeable
Yes
Built-in processor
Yes
Technical details
Expansion module support
Yes
Form factor
1U
Product colour
Grey
Stackable
Yes
Processor frequency
1200 MHz
Housing material
Steel
Firmware upgradeable
Yes
Cable management
Yes
Rack mounting
Yes
Built-in processor
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
32
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity
32
Console port
RJ-45
Security
Loop protection
Yes
BPDU filtering/protection
Yes
IGMP snooping
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast MAC address table
4000 entries
Multicast support
Yes
Certificates
Certification
UL-UL60950-1, C-UL to CAN/CSA 22.2 No.60950-1, TUV/GS, CB-IEC60950-1
Memory
Memory type
DRAM
Internal memory
2048 MB
Flash memory
2048 MB
Design
Form factor
1U
Product colour
Grey
Stackable
Yes
LED indicators
System
Housing material
Steel
Certification
UL-UL60950-1, C-UL to CAN/CSA 22.2 No.60950-1, TUV/GS, CB-IEC60950-1
Cable management
Yes
Rack mounting
Yes
Indication
LED indicators
System
Power
Power supply included
No
Power consumption (typical)
175 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 85%
Operating altitude
0 - 3.048 m
Non-operating altitude
0 - 4.877 m
Weight & dimensions
Width
440.7 mm
Depth
470 mm
Height
44 mm
Weight
8.8 kg
Packaging data
Mounting brackets included
Yes
User guide
Yes
Packaging content
Mounting brackets included
Yes
User guide
Yes
