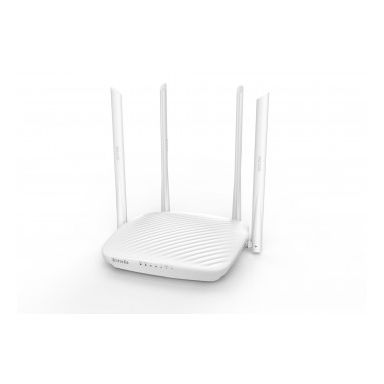

Tenda F9 wireless router Single-band (2.4 GHz) Gigabit Ethernet White
In Stock
|
Call For Price
(0808 189 1246)
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
DSL features
DSL WAN
No
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
No
3G
No
4G
No
Performance
Windows operating systems supported
Windows 2000
Firmware upgradeable
Yes
Internal memory
16 MB
Flash memory
2 MB
Memory card slot(s)
No
Processor model
Realtek
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
600 Mbit/s
Wi-Fi band
Single-band (2.4 GHz)
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth
40 MHz
Network
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Receiver sensitivity
-95 dBm, -74 dBm, -72 dBm, -62 dBm, -70 dBm, -73 dBm, -86 dBm, -90 dBm
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
10,100,1000 Mbit/s
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)
15 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)
17.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)
21.5 dBmW
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
USB port
No
Ethernet LAN (RJ-45) ports
4
DC-in jack
Yes
Memory card slot(s)
No
Management features
WPS push button
Yes
Security
Security algorithms
WPA, WPA-PSK, WPA2, WPA2-PSK
Protocols
DHCP server
Yes
Design
Product type
Tabletop router
LED indicators
System, WAN, WLAN, WPS
Product colour
White
Indication light
Yes
Software
Windows operating systems supported
Windows 2000
Packaging content
Quick start guide
Yes
Manual
Yes
Other features
Internal memory
16 MB
Flash memory
2 MB
Frequency band
2.4 - 2.4835 GHz
Antenna
Antenna design
External
Detachable antenna(s)
No
Antennas quantity
4
Antenna gain level (max)
6 dBi
Features
Firmware upgradeable
Yes
Internal memory
16 MB
Flash memory
2 MB
Processor model
Realtek
Harmonized System (HS) code
85176990
Power
Power source type
DC
Power consumption (typical)
1.98 W
Output voltage
9 V
Output current
1 A
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
System requirements
Windows operating systems supported
Windows 2000
Browser supported
Internet Explorer 5.0, Firefox 1.0
Weight & dimensions
Width
171.3 mm
Height
36.4 mm
Depth
171.3 mm
Packaging data
Quick start guide
Yes
Manual
Yes
Logistics data
Harmonized System (HS) code
85176990
Tenda F9 wireless router Single-band (2.4 GHz) Gigabit Ethernet White
