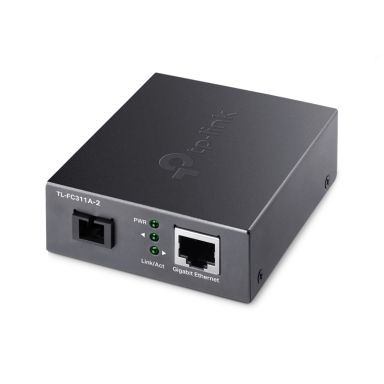

TP-LINK LINK (TL-FC311A-2) Gigabit WDM Media Converter, Fiber up to 2km, Auto-Negotiation RJ45 Port, GB SC Fiber Port, 1550 nm TX, 1310 nm RX
In Stock
|
Call For Price (0808 189 1246)
Network
Data transfer rate
1000 Mbit/s
Auto-negotiation
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Duplex system
Full, Half
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1000 Mbit/s
Fiber optic connector
SC
Performance
Wavelength-division multiplexing (WDM)
Yes
Maximum transfer distance
2000 m
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Auto-negotiation
Yes
Features
LED indicators
Activity, Link, Power
Product colour
Black
Internal
No
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
DC-in jack
Yes
Power
Output voltage
5 V
Output current
0.6 A
External power adapter
Yes
Weight & dimensions
Width
94.5 mm
Depth
73 mm
Height
27 mm
Package depth
204 mm
Package width
165 mm
Package height
65 mm
Package weight
350 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Quick installation guide
Yes
AC adapter included
Yes
Packaging data
Package depth
204 mm
Package width
165 mm
Package height
65 mm
Package weight
350 g
Technical details
Maximum transfer distance
2000 m
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Internal
No
Data transfer rate
1000 Mbit/s
Harmonized System (HS) code
85176990
Indication
LED indicators
Activity, Link, Power
Design
LED indicators
Activity, Link, Power
Product colour
Black
Internal
No
Colour
Product colour
Black
Logistics data
Harmonized System (HS) code
85176990
TP-LINK LINK (TL-FC311A-2) Gigabit WDM Media Converter, Fiber up to 2km, Auto-Negotiation RJ45 Port, GB SC Fiber Port, 1550 nm TX, 1310 nm RX
| Length | 20.4 cm |
| Width | 16.5 cm |
| Height | 6.5 cm |
| Weight | 0.35 kgs |
