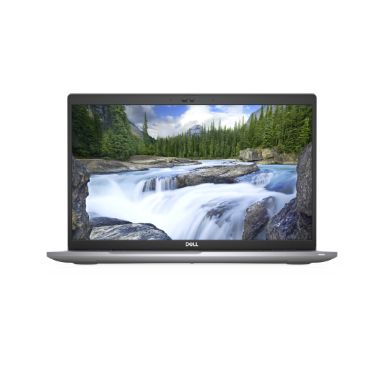

DELL Latitude 5520 DDR4-SDRAM Notebook 39.6 cm (15.6) 1920 x 1080 pixels 11th gen Intel i5 8 GB 256 GB SSD Wi-Fi 6 Windows 10 Pro
Out of Stock
|
Call For Price (0808 189 1246)
Design
Product type
Notebook
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Intel® vPro™ Platform Eligibility
No
Display
HD type
Full HD
Pixel density
141 ppi
Panel type
IPS
Display brightness
250 cd/m²
Display response rise/fall
25 ms
Pixel pitch
0.17925 x 0.17925 mm
Contrast ratio (typical)
29.167361111111
Touchscreen
No
Display resolution
1920 x 1080 pixels
Display diagonal
39.6 cm (15.6")
Anti-glare screen
Yes
Maximum refresh rate
60 Hz
RGB colour space
NTSC
Colour gamut
0.45
Native aspect ratio
0.67291666666667
Processor
Processor generation
11th gen Intel® Core™ i5
Configurable TDP-down
12 W
Configurable TDP-down frequency
0.9 GHz
Processor cache type
Smart Cache
Processor cache
8 MB
Processor model
i5-1135G7
Processor boost frequency
4.2 GHz
Processor cores
4
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Configurable TDP-up frequency
2.4 GHz
Configurable TDP-up
28 W
Memory
ECC
No
Memory form factor
SO-DIMM
Internal memory
8 GB
Memory layout (slots x size)
1 x 8 GB
Internal memory type
DDR4-SDRAM
Memory clock speed
3200 MHz
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
256 GB
SSD interface
PCI Express
Card reader integrated
Yes
Total storage capacity
256 GB
Total SSDs capacity
256 GB
Graphics
Discrete graphics card
No
On-board graphics card
Yes
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
Not available
Audio
Audio chip
Realtek ALC3204
Audio system
MaxxAudio Pro
Number of built-in speakers
2
Speakers manufacturer
Waves
Speaker power
2 W
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1280 x 720 pixels
Video capturing speed
30 fps
Front camera HD type
HD
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN controller model
Intel Wi-Fi 6 AX201
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.1
WWAN
Yes
Wi-Fi data rate (max)
2400 Mbit/s
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
HDMI ports quantity
1
HDMI version
2
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
USB Power Delivery
Yes
PowerShare
Yes
Number of USB ports with PowerShare support
1
Charging port type
USB Type-C
USB4 Gen 3x2 ports quantity
2
Keyboard
Pointing device
SinglePoint
Numeric keypad
Yes
Keyboard backlit
Yes
Software
Operating system architecture
64-bit
Trial software
Microsoft Office 30 day
Operating system installed
Windows 10 Pro
Technical details
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
4
Battery capacity (Watt-hours)
63 Wh
Battery recharge time
3 h
Battery voltage
15.2 V
Fast charging
Yes
Battery weight
250 g
Power
AC adapter power
65 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output current
3.25 A
AC adapter output voltage
20 V
Security
Password protection
Yes
Smart card reader
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
140 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Weight & dimensions
Width
357.8 mm
Depth
236.2 mm
Height (front)
1.99 cm
Height (rear)
2.21 cm
Weight
1.59 kg
DELL Latitude 5520 DDR4-SDRAM Notebook 39.6 cm (15.6) 1920 x 1080 pixels 11th gen Intel i5 8 GB 256 GB SSD Wi-Fi 6 Windows 10 Pro
| Length | 23.62 cm |
| Width | 35.78 cm |
| Height | 1.99 cm |
| Weight | 1.59 kgs |
