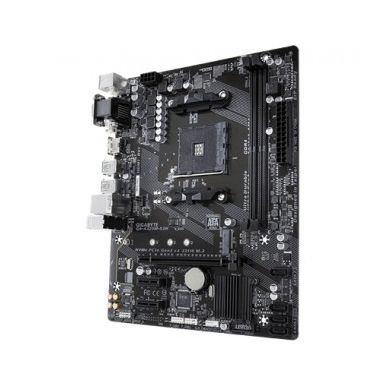

Gigabyte GA-A320M-S2H motherboard Socket AM4 Micro ATX AMD A320
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
Serial port headers
1
PC health monitoring
CPU- Fan- Temperature- Voltage
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
RAID levels
0-1-10
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD A- AMD Athlon- AMD Athlon X4- AMD Ryzen 3- 2nd Generation AMD Ryzen⢠3- AMD Ryzen 3 3rd Gen- AMD Ryzen 5- 2nd Generation AMD Ryzen⢠5- 3rd Generation AMD Ryzen 5- AMD Ryzen 7- 2nd Generation AMD Ryzen⢠7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2667-2933-3200 MHz
Maximum internal memory
32 GB
Storage controllers
RAID levels
0-1-10
Internal I/O
Front panel connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Features
Power source type
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
PC health monitoring
CPU- Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
16 Mbit
ACPI version
5.0
Power
Power source type
ATX
Software
Bundled software
Norton® Internet Security (OEM version) cFosSpeed
Weight & dimensions
Width
244 mm
Depth
195 mm
Packaging content
Utilities included
Yes
Manual
Yes
Quick installation guide
Yes
Bundled software
Norton® Internet Security (OEM version) cFosSpeed
Other features
Utilities included
Yes
Quick installation guide
Yes
Gigabyte GA-A320M-S2H motherboard Socket AM4 Micro ATX AMD A320
