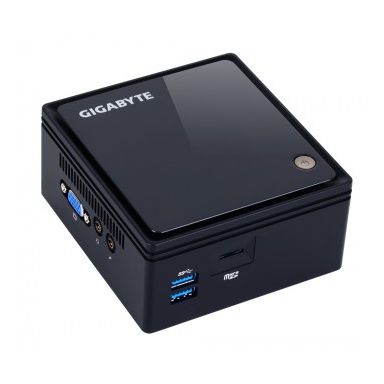

Gigabyte GB-BACE-3160 PC/workstation barebone J3160 1.6 GHz 0.69L Sized PC Black
0 Reviews
| Add your review
In Stock
|
£111.08
£133.30 (Inc. VAT)
| Motherboard | |
|---|---|
| Number of processors supported | 1 |
| Processor | |
| Thermal Design Power (TDP) | 6 W |
| Built-in processor | Yes |
| Processor model | J3160 |
| Processor boost frequency | 2.24 GHz |
| Processor threads | 4 |
| Processor frequency | 1.6 GHz |
| Processor lithography | 14 nm |
| Processor cores | 4 |
| Processor family | Intel® Celeron® |
| Number of processors supported | 1 |
| Processor manufacturer | Intel |
| Processor codename | Braswell |
| CPU configuration (max) | 1 |
| Memory | |
| Memory voltage | 1.35 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Supported memory types | DDR3L-SDRAM |
| Maximum internal memory | 8 GB |
| Video | |
| On-board graphics adapter | Yes |
| Graphics adapter family | Intel |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2- Serial ATA III |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| On-board graphics adapter | Yes |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® HD Graphics 400 |
| Audio | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Network | |
| Bluetooth version | 4.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2+2x1-1x4-2x2-4x1 |
| Design | |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Panel mounting interface | 75 x 75 mm |
| Product colour | Black |
| Chassis type | 0.69L sized PC |
| Performance | |
| Maximum resolution | 3840 x 2160 pixels |
| Windows operating systems supported | Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64 |
| Operating system installed | No |
| Number of processors supported | 1 |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Intel® Smart Response Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Secure Key | Yes |
| Intel® OS Guard | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Rapid Storage Technology | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Colour | |
| Product colour | Black |
| Technical details | |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Intel Rapid Storage Technology | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Panel mounting interface | 75 x 75 mm |
| Processor cores | 4 |
| Chassis type | 0.69L sized PC |
| Management features | |
| On/off switch | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.1 A |
| Power supply type | External AC adapter |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
| Width | 107.6 mm |
| Depth | 114.4 mm |
| Height | 56.1 mm |
| Other features | |
| Embedded options available | No |
| Chassis type | 0.69L sized PC |
| Processor ARK ID | 91533 |
