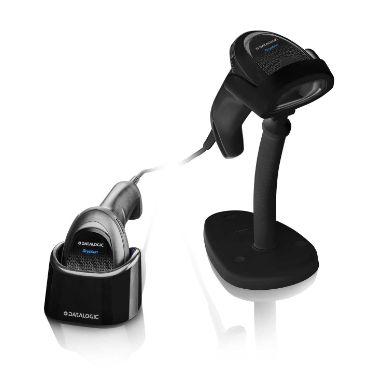

Datalogic Gryphon GBT4500 Handheld bar code reader 1D/2D Laser Black
In Stock
|
$644.71
$773.65 (Inc. VAT)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
GS1 DataBar, GS1 DataBar Expanded, PDF417
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Yaw reading angle
-65 - 65°
Wavelength
650 nm
Tilt reading angle
0 - 360°
Sensor type
Laser
Scanner type
1D/2D
Pitch reading angle
-65 - 65°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Wireless range
100 m
Connectivity technology
Wireless
Bluetooth version
4.0
Operating frequency
2400 MHz
Standard interfaces
Bluetooth
Performance
International Protection (IP) code
IP52
Product colour
Black
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Handheld bar code reader
International Protection (IP) code
IP52
Product colour
Black
Power
Power source type
Battery
Charging time
4 h
Battery voltage
12 V
Number of reads per charge
80000
Input voltage
4.5 - 14 V
Battery technology
Lithium Polymer (LiPo)
Battery capacity
3250 mAh
Weight & dimensions
Width
109 mm
Depth
68 mm
Height
166 mm
Weight
235 g
Technical details
Type
Handheld bar code reader
International Protection (IP) code
IP52
Product colour
Black
Sustainability certificates
RoHS
Harmonized System (HS) code
84716070
Compliance certificates
RoHS
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Light levels (direct sunlight)
0 - 100000 lx
Logistics data
Harmonized System (HS) code
84716070
Datalogic Gryphon GBT4500 Handheld bar code reader 1D/2D Laser Black
