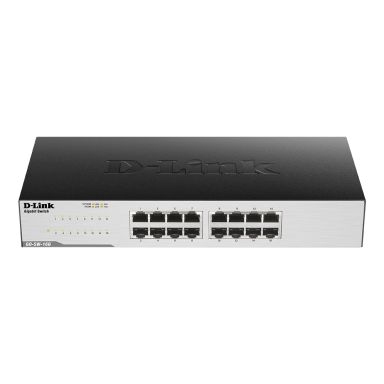

D-Link GO-SW-16G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
In Stock
|
£66.00
£79.20 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
DC-in jack
Performance
Packet buffer memory
0.512 MB
Auto-negotiation
Yes
Mean time between failures (MTBF)
305171 h
Harmonized System (HS) code
85176990
Power
Power connector
DC-in jack
Power consumption (max)
11.7 W
Power supply included
Yes
Redundant power supply (RPS) support
No
Number of power supply units
1
Input current
1 A
DC input voltage
12 V
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
305171 h
Housing material
Metal
Rack mounting
Yes
Shipping (inner) case width
34 cm
Shipping (inner) case net weight
15 kg
Shipping (inner) case length
56.9 cm
Shipping (inner) case height
38.4 cm
Products per shipping (inner) case
10 pc(s)
Products per pallet (sea)
300 pc(s)
Products per pallet (air)
300 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
2.06 m
Pallet height (air)
2.06 m
Pallet gross weight (sea)
491.5 kg
Pallet gross weight (air)
491.5 kg
Master (outer) cases per pallet (sea)
30 pc(s)
Master (outer) cases per pallet (air)
30 pc(s)
Shipping (inner) case gross weight
15.6 kg
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Data transmission
Jumbo frames
9216
Packet buffer memory
0.512 MB
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
23.81 Mpps
Certificates
Certification
CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC
Memory
Packet buffer memory
0.512 MB
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Housing material
Metal
Certification
CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC
Rack mounting
Yes
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
39.92 BTU/h
Weight & dimensions
Width
280 mm
Depth
126 mm
Height
44 mm
Weight
870 g
Packaging data
Package width
180 mm
Package depth
328 mm
Package height
108 mm
Package weight
1.45 kg
Logistics data
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
D-Link GO-SW-16G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
| Length | 32.8 cm |
| Width | 18 cm |
| Height | 10.8 cm |
| Weight | 1.45 kgs |
