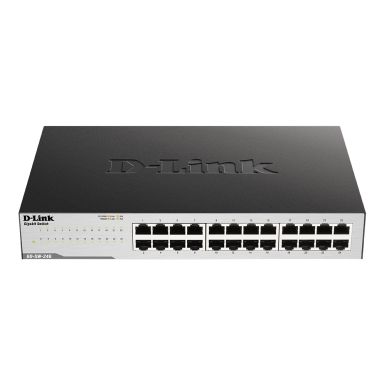

D-Link GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
In Stock
|
£84.00
£100.80 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Performance
Packet buffer memory
0.512 MB
Auto-negotiation
Yes
Mean time between failures (MTBF)
302287 h
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
302287 h
Housing material
Metal
Rack mounting
Yes
Shipping (inner) case width
41.3 cm
Shipping (inner) case net weight
11.5 kg
Shipping (inner) case length
46.3 cm
Shipping (inner) case height
27 cm
Products per shipping (inner) case
5 pc(s)
Products per pallet (sea)
140 pc(s)
Products per pallet (air)
140 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
2.02 m
Pallet height (air)
2.02 m
Pallet gross weight (sea)
373.6 kg
Pallet gross weight (air)
373.6 kg
Master (outer) cases per pallet (sea)
28 pc(s)
Master (outer) cases per pallet (air)
28 pc(s)
Shipping (inner) case gross weight
12.4 kg
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Data transmission
Jumbo frames
9216
Packet buffer memory
0.512 MB
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
35.71 Mpps
Certificates
Certification
CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC
Memory
Packet buffer memory
0.512 MB
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Housing material
Metal
Certification
CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
15.4 W
Power supply included
Yes
AC input voltage
100 - 240 V
Redundant power supply (RPS) support
No
Number of power supply units
1
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
52.54 BTU/h
Weight & dimensions
Width
280 mm
Depth
180 mm
Height
44 mm
Weight
1.35 kg
Packaging data
Package width
245 mm
Package depth
438 mm
Package height
77 mm
Package weight
2.3 kg
Logistics data
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
D-Link GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
| Length | 43.8 cm |
| Width | 24.5 cm |
| Height | 7.7 cm |
| Weight | 2.30 kgs |
