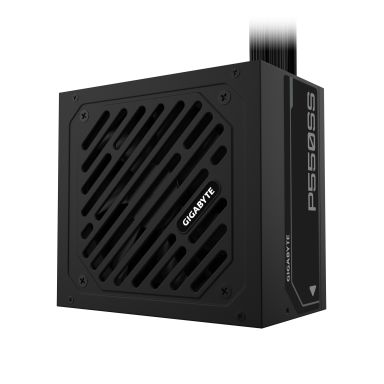

GIGABYTE P550SS power supply unit 550 W 20+4 pin ATX ATX Black

Fan diameter

12 cm

Number of fans

1 fan(s)

Fan location

Top

Cooling type

Active

On/off switch

Yes

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Bronze

Purpose

PC

ATX version

3.0

Mean time between failures (MTBF)

100000 h

Bearing technology

HDB

Harmonized System (HS) code

84733020

80 PLUS certification

80 PLUS Bronze

Product colour

Black

Fan diameter

12 cm

On/off switch

Yes

Number of fans

1 fan(s)

Fan location

Top

Cooling type

Active

Total power

550 W

AC input voltage

155-240 V

AC input frequency

50/60 Hz

Input current

6.3 A

Power factor

0.9

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

100 W

Combined power (+12V)

549.6 W

Combined power (+5V)

200 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

20 A

Max output current (+12V)

45.8 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Hold time

16 ms

Efficiency

90%

Motherboard power cable length

60 cm

SATA power cable length

500 mm

Peripheral (Molex) power cable length

500 mm

PCI Express power cable length

50 cm

CPU power cable length

60 cm

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

5

Peripheral (Molex) power connectors (4-pin)

3

PCI Express power connectors (6+2 pin)

2

CPU power connector (4+4 pin)

Yes

PCI Express connector

Yes

Floppy drive power connector

1

Floppy disk drive connector

Yes

ATX power connector (20+4 pin)

Yes

Cabling type

Non-Modular

Width

150 mm

Depth

140 mm

Height

86 mm

80 PLUS certification

80 PLUS Bronze

Harmonized System (HS) code

84733020

Harmonized System (HS) code

84733020
