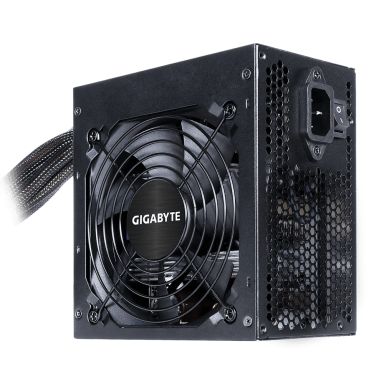

Gigabyte GP-650B POWER SUPPLY power supply unit 650 W 20+4 pin ATX ATX Black
In Stock
|
$73.64
$88.37 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
Noise level (quiet mode, 50%)
29 dB
Noise level (silent mode,
20 dB
Noise level (full-load mode, 100%)
39 dB
80 PLUS certification
80 PLUS Bronze
Purpose
PC
ATX version
2.31
Noise level
39 dB
Mean time between failures (MTBF)
100000 h
Certification
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Bearing technology
HDB
Harmonized System (HS) code
84733020
Design
80 PLUS certification
80 PLUS Bronze
Certification
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
650 W
Maximum input current (@220V)
4 A
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
9 - 4 A
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
9 A
Combined power (+3.3V)
108 W
Combined power (+12V)
648 W
Combined power (+5V)
108 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
18 A
Max output current (+12V)
54 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power, Overcharge, Short circuit, Under voltage
Power management
Yes
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
150,500 mm
Peripheral (Molex) power cable length
150,500 mm
PCI Express power cable length
65 cm
CPU power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
4
CPU P4 connector (4-pin)
1
CPU power connector (4+4 pin)
Yes
Floppy disk drive connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Non-Modular
Weight & dimensions
Width
140 mm
Depth
150 mm
Height
86 mm
Packaging data
Package type
Box
Certificates
80 PLUS certification
80 PLUS Bronze
Certification
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Logistics data
Harmonized System (HS) code
84733020
Other features
Noise level (quiet mode, 50%)
29 dB
Noise level (silent mode,
20 dB
Noise level (full-load mode, 100%)
39 dB
Power management
Yes
Harmonized System (HS) code
84733020
Gigabyte GP-650B POWER SUPPLY power supply unit 650 W 20+4 pin ATX ATX Black
