In Stock
|
$48.32
$57.98 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Design
80 PLUS certification
80 PLUS Bronze
Certification
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Power
Total power
650 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
9, 4 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
108 W
Combined power (+12V)
648 W
Combined power (+5V)
108 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
18 A
Max output current (+12V)
0.3 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power, Over voltage, Overcharge, Short circuit, Under voltage
Efficiency
85%
Ports & interfaces
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
Floppy disk drive connector
Yes
ATX Power connector (24-pin)
Yes
Performance
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
ATX version
2.31
Mean time between failures (MTBF)
100000 h
Certification
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Harmonized System (HS) code
84733020
Weight & dimensions
Width
140 mm
Depth
150 mm
Height
86 mm
Certificates
80 PLUS certification
80 PLUS Bronze
Certification
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Logistics data
Harmonized System (HS) code
84733020
Other features
Harmonized System (HS) code
84733020

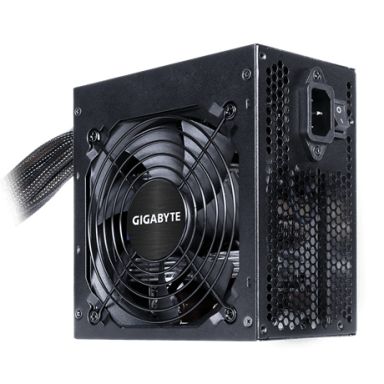

Gigabyte P650B power supply unit 650 W 20+4 pin ATX ATX Black
