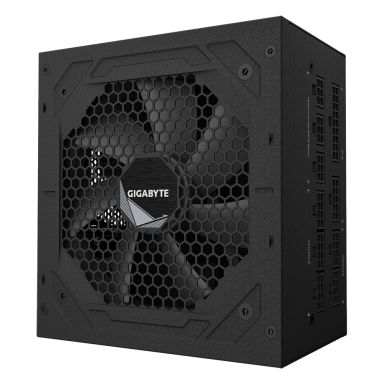

Gigabyte UD1000GM power supply unit 1000 W 20+4 pin ATX Black
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Performance | |
| On/off switch | Yes |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HDB |
| Harmonized System (HS) code | 84733020 |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Power | |
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 6.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current- Over power- Over voltage- Short circuit- Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| CPU power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Modular |
| EPS power connector (4+4 pin) | Yes |
| Packaging content | |
| Cables included | CPU- PCIe- Peripheral (Molex)- SATA |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Packaging data | |
| Cables included | CPU- PCIe- Peripheral (Molex)- SATA |
| Package type | Box |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Harmonized System (HS) code | 84733020 |
Gigabyte UD1000GM power supply unit 1000 W 20+4 pin ATX Black
