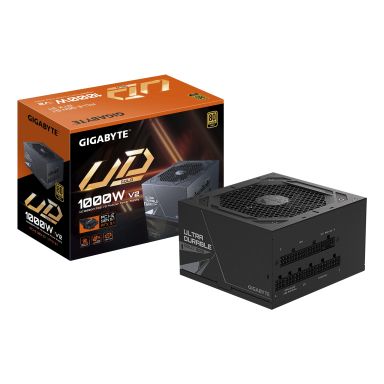

Gigabyte GP-UD1000GM PG5 V2 power supply unit 1000 W 20+4 pin ATX ATX Black

Fan diameter

12 cm

Number of fans

1 fan(s)

Cooling type

Active

On/off switch

Yes

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

Purpose

PC

ATX version

3.1

Mean time between failures (MTBF)

100000 h

Bearing technology

HYB

80 PLUS certification

80 PLUS Gold

Product colour

Black

Fan diameter

12 cm

On/off switch

Yes

Number of fans

1 fan(s)

Cooling type

Active

Total power

1000 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

15 - 6.5 A

Power factor

0.9

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

125 W

Combined power (+12V)

1000 W

Combined power (+5V)

125 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+12V)

83.3 A

Max output current (+5V)

25 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Hold time

16 ms

Efficiency

90%

Motherboard power cable length

61 cm

SATA power cable length

150,600 mm

Peripheral (Molex) power cable length

120,150,500 mm

PCI Express power cable length

70 cm

CPU power cable length

60 cm

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

8

Peripheral (Molex) power connectors (4-pin)

3

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

PCI Express connector

Yes

Floppy drive power connector

1

Cabling type

Fully-Modular

PCI Express power connectors (16-pin)

1

Number of EPS connectors

2

Width

150 mm

Depth

140 mm

Height

86 mm

Weight

2.48 kg

Package depth

269 mm

Package width

618 mm

Package height

211 mm

Package type

Box

Package weight

2.64 kg

Warranty period

10 year(s)

80 PLUS certification

80 PLUS Gold

Warranty period

10 year(s)
