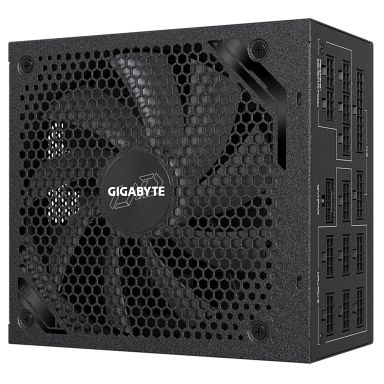

Gigabyte UD1300GM PG5 power supply unit 1300 W 20+4 pin ATX ATX Black
In Stock
|
Call For Price
(0808 189 1246)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
Illumination
No
Fan location
Top
Cooling type
Active
Power
Total power
1300 W
Maximum input current (@220V)
12 A
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
12 - 6 A
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
6 A
Combined power (+3.3V)
125 W
Combined power (+12V)
1300 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
17.5 W
Max output current (+3.3V)
25 A
Max output current (+12V)
108.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3.5 A
Power protection features
Over current- Over power- Over voltage- Overheating- Short circuit- Under voltage
Hold time
16 ms
Efficiency
90%
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
150-600 mm
Peripheral (Molex) power cable length
200-600 mm
PCI Express power cable length
70 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
Number of PATA power connectors
3
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
ATX power connector (20+4 pin)
Yes
PCI Express power connectors (16-pin)
1
Performance
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
Noise level
40 dB
Mean time between failures (MTBF)
100000 h
Packaging content
Cables included
CPU- PATA- Peripheral (Molex)- SATA
Cable tie(s) included
Yes
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Packaging data
Cables included
CPU- PATA- Peripheral (Molex)- SATA
Package type
Box
Technical details
Sustainability certificates
CCC- CE- Federal Communications Commission (FCC)- RoHS
Warranty period
5 year(s)
Certificates
80 PLUS certification
80 PLUS Gold
