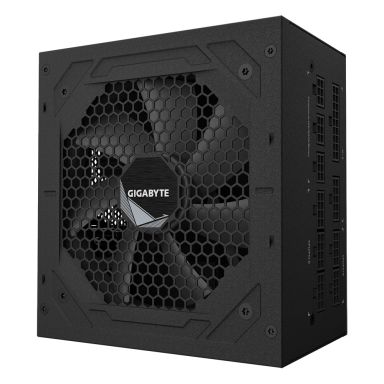

Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
In Stock
|
$91.43
$109.72 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
2.31
Mean time between failures (MTBF)
100000 h
Harmonized System (HS) code
84733020
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
850 W
Maximum input current (@220V)
6 A
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power factor
0.9
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
12 A
Combined power (+3.3V)
105 W
Combined power (+12V)
849.6 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.8 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time
16 ms
Efficiency
90%
Ports & interfaces
Motherboard power cable length
61 cm
CPU power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
Floppy drive power connector
2
Floppy disk drive connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Packaging data
Package type
Box
Certificates
80 PLUS certification
80 PLUS Gold
Logistics data
Harmonized System (HS) code
84733020
Other features
Harmonized System (HS) code
84733020
Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
