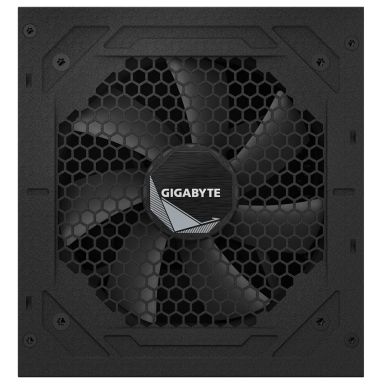

GIGABYTE GP-UD850GM PG5 power supply unit 850 W 20+4 pin ATX Black
In Stock
|
$113.65
$136.38 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
Illumination
No
Fan location
Top
Cooling type
Active
Power
Total power
850 W
Maximum input current (@220V)
12 A
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
12 - 6 A
Power Factor Correction (PFC) type
Active
Maximum input current (@110V)
6 A
Combined power (+3.3V)
105 W
Combined power (+12V)
850 W
Combined power (+5V)
105 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.8 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time
16 ms
Efficiency
90%
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
150,600 mm
Peripheral (Molex) power cable length
200,600 mm
PCI Express power cable length
70 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
Number of PATA power connectors
3
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (16-pin)
1
Performance
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
Noise level
40 dB
Mean time between failures (MTBF)
100000 h
Packaging content
Cables included
CPU, PATA, Peripheral (Molex), SATA
Cable tie(s) included
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
85 mm
Packaging data
Cables included
CPU, PATA, Peripheral (Molex), SATA
Package type
Box
Technical details
Warranty period
5 year(s)
Compliance certificates
CCC, CE, Federal Communications Commission (FCC), RoHS
Certificates
80 PLUS certification
80 PLUS Gold
