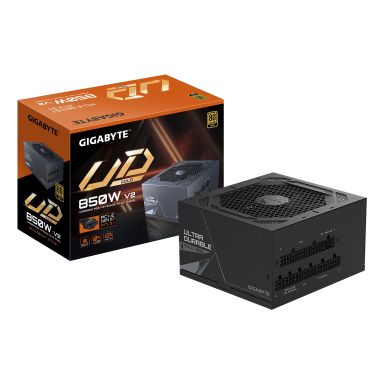

Gigabyte GP-UD850GM PG5 power supply unit 850 W 20+4 pin ATX ATX Black
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 850 W |
| Maximum input current (@220V) | 12 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 6 A |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current- Over power- Over voltage- Overheating- Short circuit- Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 150-600 mm |
| Peripheral (Molex) power cable length | 200-600 mm |
| PCI Express power cable length | 70 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 1 |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Noise level | 40 dB |
| Mean time between failures (MTBF) | 100000 h |
| Packaging content | |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Packaging data | |
| Package type | Box |
| Technical details | |
| Sustainability certificates | CCC- CE- Federal Communications Commission (FCC)- RoHS |
| Warranty period | 5 year(s) |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
Gigabyte GP-UD850GM PG5 power supply unit 850 W 20+4 pin ATX ATX Black
