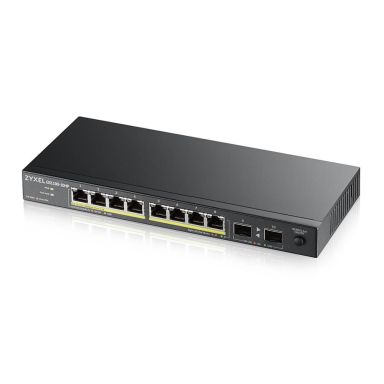

Zyxel GS1100-10HP v2 unmanage PoE 8x Gigabit 2x Fiber Uplink 120 Watt PoE
In Stock
|
$136.11
$163.33 (Inc. VAT)
Performance
Packet buffer memory
0.256 MB
Mean time between failures (MTBF)
1000070 h
Harmonized System (HS) code
85176990
Power
Power connector
DC-in jack
Power consumption (max)
156.1 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
54 V
Power source
AC/DC
Technical details
Product colour
Black
Mean time between failures (MTBF)
1000070 h
Sustainability compliance
Yes
Sustainability certificates
RoHS
Management features
Switch type
Unmanaged
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1p- IEEE 802.3- IEEE 802.3ab- IEEE 802.3af- IEEE 802.3at- IEEE 802.3az- IEEE 802.3u- IEEE 802.3x- IEEE 802.3z
Ethernet LAN data rates
100-1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Jumbo frames
9000
Packet buffer memory
0.256 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Memory
Packet buffer memory
0.256 MB
Design
Wall mountable
Yes
Country of origin
China
Product colour
Black
LED indicators
Yes
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
89 BTU/h
Weight & dimensions
Width
250 mm
Depth
104 mm
Height
27 mm
Weight
730 g
Packaging data
Package width
228 mm
Package depth
304 mm
Package height
67 mm
Package weight
1.97 kg
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
323 mm
Master (outer) case length
558 mm
Master (outer) case height
275 mm
Master (outer) case gross weight
13.7 kg
Products per master (outer) case
8 pc(s)
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
100-1000 Mbit/s
Country of origin
China
Zyxel GS1100-10HP v2 unmanage PoE 8x Gigabit 2x Fiber Uplink 120 Watt PoE
