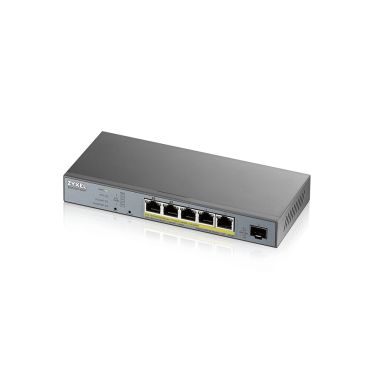

Zyxel GS1350-6HP-GB0101F Managed L2 Gigabit Ethernet Power over Ethernet (PoE)
In Stock
|
$146.93
$176.32 (Inc. VAT)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
MIB support
RFC 1066- RFC 1213- 1157- RFC 1493- RFC 1643- RFC 1757- RFC 2011- 2012- 2013- RFC 2233- RFC 2358- RFC 2674- RFC 2819- 2925- RFC 3621- RFC 4293- RFC 4292- RFC 4022- RFC 4113
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
SFP module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
IGMP proxy
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1ab-IEEE 802.1p-IEEE 802.1w-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3bt-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
256
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
MAC address-based VLAN-Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Virtual LAN features
MAC address-based VLAN-Port-based VLAN
Data transmission
Number of VLANs
256
Packet buffer memory
0.525 MB
MAC address table
8000 entries
Switching capacity
12 Gbit/s
Forwarding rate
8.9 Mpps
Performance
Packet buffer memory
0.525 MB
Mean time between failures (MTBF)
2021885.87 h
Firmware upgradeable
Yes
Technical details
Product colour
Grey
Mean time between failures (MTBF)
2021885.87 h
Firmware upgradeable
Yes
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Security
Loop protection
Yes
Security algorithms
SNMP-SNMPv3-SSH-SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Queue scheduling algorithms
SPQ-WFQ-Weighted Round Robin (WRR)
IGMP proxy
Yes
DHCP features
DHCP client-DHCP relay-DHCP snooping
Multicast features
Multicast support
Yes
Certificates
Electromagnetic compatibility
CE- FCC- C-Tick- A; BSMI CNS13438
Certification
LVD EN62368-1- BSMI CNS14336-1- RoHS
Memory
Packet buffer memory
0.525 MB
Design
Wall mountable
Yes
Product colour
Grey
LED indicators
Yes
Electromagnetic compatibility
CE- FCC- C-Tick- A; BSMI CNS13438
Certification
LVD EN62368-1- BSMI CNS14336-1- RoHS
Indication
LED indicators
Yes
Power
Power consumption (max)
72 W
Power supply included
Yes
DC input voltage
52 - 57 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
60 W
Power over Ethernet (PoE) ports quantity
5
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
245.52 BTU/h
Weight & dimensions
Width
193 mm
Depth
84 mm
Height
26 mm
Weight
410 g
Packaging data
Package width
242 mm
Package depth
255 mm
Package height
65 mm
Package weight
1.08 kg
Zyxel GS1350-6HP-GB0101F Managed L2 Gigabit Ethernet Power over Ethernet (PoE)
