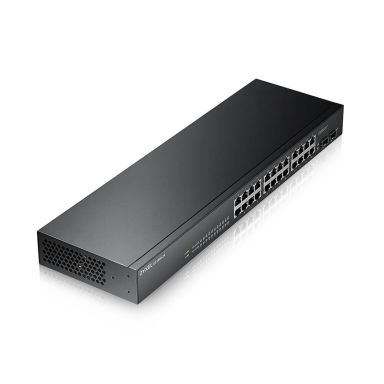

Zyxel GS1900-24 V2 24-Port Gbe L2 Smart Switch Rackmount Fanless
In Stock
|
$137.29
$164.75 (Inc. VAT)
Management features
Reset button
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 1213 MIB II- RFC 2819 RMON (group 1- 2- 3- 9)- RFC 1215- RFC 1493
Switch layer
L2
Network
IGMP snooping
Yes
MAC address auto-learning supported
Yes
Networking standards
IEEE 802.1D- IEEE 802.1p- IEEE 802.1s- IEEE 802.1w- IEEE 802.3- IEEE 802.3ab- IEEE 802.3af- IEEE 802.3at- IEEE 802.3az- IEEE 802.3u- IEEE 802.3x
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
10G support
No
Virtual LAN features
Tagged VLAN- VLAN Identifier ( VLAN ID)- Voice VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Tagged VLAN- VLAN Identifier ( VLAN ID)- Voice VLAN
Performance
Packet buffer memory
0.525 MB
Stackable
Yes
Mean time between failures (MTBF)
432.673 h
Harmonized System (HS) code
85176990
Power
Power connector
AC-in jack
Power consumption (max)
16 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Technical details
Form factor
1U
Product colour
Black
Stackable
Yes
Mean time between failures (MTBF)
432.673 h
Rack mounting
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
AC-in jack
Data transmission
Jumbo frames
9000
Packet buffer memory
0.525 MB
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
39 Mpps
Security
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
IGMP snooping
Yes
Password protection
Yes
Authentication type
RADIUS- TACACS+
DHCP features
DHCP client
Certificates
Certification
EMC â CE- FCC- C-Tick- Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) â CE- FCC- C-Tick- Class B (GS1900-8/8HP/10HP/16/24E) â BSMI CNS13438 ⢠Safety â LVD EN60950-1 â BSMI CNS14336-1 â CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) ⢠RoHS compliant
Memory
Packet buffer memory
0.525 MB
Design
Reset button
Yes
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Certification
EMC â CE- FCC- C-Tick- Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) â CE- FCC- C-Tick- Class B (GS1900-8/8HP/10HP/16/24E) â BSMI CNS13438 ⢠Safety â LVD EN60950-1 â BSMI CNS14336-1 â CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) ⢠RoHS compliant
Rack mounting
Yes
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
55 BTU/h
Weight & dimensions
Width
440 mm
Depth
131 mm
Height
44 mm
Weight
2.09 kg
Packaging data
Package type
Box
Rack mount kit
Yes
Package width
561 mm
Package depth
217 mm
Package height
82 mm
Package weight
2.85 kg
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
10-100-1000 Mbit/s
Packaging content
Rack mount kit
Yes
Cables included
AC
Zyxel GS1900-24 V2 24-Port Gbe L2 Smart Switch Rackmount Fanless
