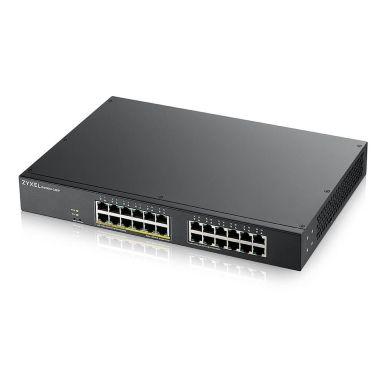

Zyxel GS1900-24EP-GB0101F 24-port GbE L2-12 Port PoE Smart Switch
In Stock
|
$240.22
$288.26 (Inc. VAT)
Management features
Reset button
Yes
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
MIB support
RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB
Switch layer
L2
Network
IGMP snooping
Yes
Cable types supported
Cat5, Cat5e
MAC address auto-learning supported
Yes
Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
No
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Performance
Packet buffer memory
0.525 MB
Stackable
Yes
Noise level
26 dB
Power
Power connector
AC-in jack
Power consumption (max)
166.5 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Technical details
Product colour
Black
Stackable
Yes
Noise level
26 dB
Rack mounting
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
AC-in jack
Data transmission
Jumbo frames
9000
Packet buffer memory
0.525 MB
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
35.7 Mpps
Security
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
802.1x RADIUS
MAC address filtering
Yes
IGMP snooping
Yes
Password protection
Yes
Authentication type
HWTACACS+, IEEE 802.1x, RADIUS
DHCP features
DHCP client
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
0.525 MB
Design
Reset button
Yes
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE) ports quantity
12
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
330 mm
Depth
230 mm
Height
44 mm
Weight
2.48 kg
Packaging data
Quick start guide
Yes
User guide
Yes
Manual
Yes
Cables included
AC
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Packaging content
Quick start guide
Yes
User guide
Yes
Manual
Yes
Cables included
AC
Zyxel GS1900-24EP-GB0101F 24-port GbE L2-12 Port PoE Smart Switch
