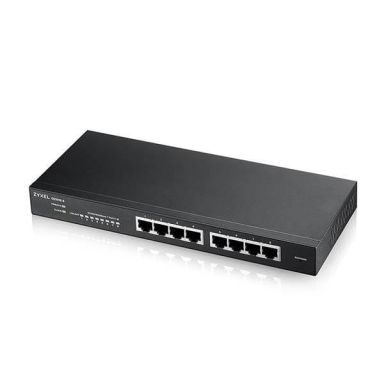

Zyxel GS1915-8 Managed L2 Gigabit Ethernet (10/100/1000) Black
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 1213 MIB II- RFC 2819- RFC 1215- RFC 1493
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T- 100BASE-TX- 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Power connector
AC-in jack
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T- 100BASE-TX- 1000BASE-T
Networking standards
IEEE 802.1Q- IEEE 802.1s- IEEE 802.1x- IEEE 802.3ab- IEEE 802.3af- IEEE 802.3at- IEEE 802.3az- IEEE 802.3u- IEEE 802.3x
Full duplex
Yes
VLAN support
Yes
Rate limiting
Yes
Number of VLANs
8
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
VLAN support
Yes
Number of VLANs
8
Data transmission
Number of VLANs
8
Jumbo frames
9000
Packet buffer memory
0.5 MB
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Jumbo frames support
Yes
Forwarding rate
11.9 Mpps
Performance
Packet buffer memory
0.5 MB
Mean time between failures (MTBF)
1144461 h
Power
Power connector
AC-in jack
Power consumption (max)
4.7 W
AC input voltage
220 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Technical details
Product colour
Black
Mean time between failures (MTBF)
1144461 h
Security
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP v1-v2-v3- RMON (1-2-3-9)
Certificates
Electromagnetic compatibility
LVD EN60950-1- BSMI CNS14336-1
Certification
CE- FCC- C-Tick- Class A- Class B- BSMI CNS13438
Memory
Packet buffer memory
0.5 MB
Design
Product colour
Black
LED indicators
Yes
Electromagnetic compatibility
LVD EN60950-1- BSMI CNS14336-1
Certification
CE- FCC- C-Tick- Class A- Class B- BSMI CNS13438
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
16.03 BTU/h
Weight & dimensions
Width
250 mm
Depth
104 mm
Height
27 mm
Weight
620 g
Packaging data
Package type
Box
Quick start guide
Yes
Package width
302 mm
Package depth
227 mm
Package height
64 mm
User guide
Yes
Package weight
1.1 kg
Manual
Yes
Cables included
AC
Packaging content
Quick start guide
Yes
User guide
Yes
Manual
Yes
Cables included
AC
