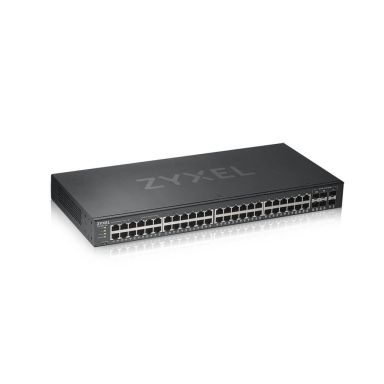

Zyxel GS1920-48V2-GB0101F 48 Ports Manageable Ethernet Switch 4 Layer Supported Modular
In Stock
|
$301.86
$362.23 (Inc. VAT)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 1066- RFC 1213- RFC 1157- RFC 1493- RFC 1643- RFC 1757- RFC 2011.2012-2013- RFC 2233- RFC 2358- RFC 2674- RFC 2819-2925- RFC 3621- RFC 4022- RFC 4113- RFC 4292- RFC 4293
Ports & interfaces
Copper ethernet cabling technology
100BASE-TX- 1000BASE-T
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
44
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
Fiber optic connector
SFP
Network
IGMP snooping
Yes
Copper ethernet cabling technology
100BASE-TX- 1000BASE-T
Networking standards
IEEE 802.1D- IEEE 802.1Q- IEEE 802.1ab- IEEE 802.1p- IEEE 802.1s- IEEE 802.1w- IEEE 802.1x- IEEE 802.3ab- IEEE 802.3ad- IEEE 802.3u- IEEE 802.3x- IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Flow control support
Yes
10G support
No
Virtual LAN features
Private VLAN- Voice VLAN- Protocol-based VLAN- MAC address-based VLAN- Port-based VLAN- IP subnetâbased VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Private VLAN- Voice VLAN- Protocol-based VLAN- MAC address-based VLAN- Port-based VLAN- IP subnetâbased VLAN
Optical fiber
Fiber optic connector
SFP
Fiber ethernet cabling technology
1000BASE-X
Performance
Packet buffer memory
1.5 MB
Noise level
26 dB
Mean time between failures (MTBF)
672235 h
Internal memory
256 MB
Flash memory
32 MB
Harmonized System (HS) code
85176990
Technical details
Product colour
Black
Noise level
26 dB
Mean time between failures (MTBF)
672235 h
Rack mounting
Yes
Data transmission
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
100 Gbit/s
Forwarding rate
74 Mpps
Security
IP-MAC-Port binding
Yes
Authentication
Guest VLAN- Port-based authentication
Security algorithms
802.1x RADIUS- SNMP- SNMPv3
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SPQ- WFQ- Weighted Round Robin (WRR)
Password protection
Yes
CPU defense
Yes
Authentication type
IEEE 802.1x- RADIUS
DHCP features
DHCP snooping- DHCP relay- DHCPv6 relay- DHCP client
Multicast features
Multicast support
Yes
Certificates
Safety
LVD- BSMI
Electromagnetic compatibility
FCC 15 A- CE A- BSMI EMC
Certification
RoHS
Memory
Packet buffer memory
1.5 MB
Internal memory
256 MB
Flash memory
32 MB
Design
Safety
LVD- BSMI
Product colour
Black
LED indicators
Yes
Electromagnetic compatibility
FCC 15 A- CE A- BSMI EMC
Certification
RoHS
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
36.9 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
125.83 BTU/h
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44.5 mm
Weight
2.8 kg
Packaging data
Rack mount kit
Yes
Package width
496 mm
Package depth
289 mm
Package height
90 mm
Package weight
3.97 kg
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Rack mount kit
Yes
Cables included
AC
