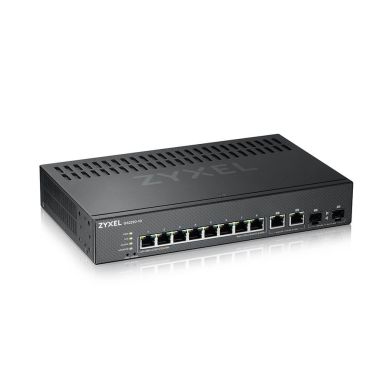

Zyxel GS2220-10-GB0101F 8-port GbE L2 Switch
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Performance
Packet buffer memory
1.5 MB
Mean time between failures (MTBF)
1213492 h
Internal memory
256 MB
Flash memory
32 MB
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Fanless
Yes
Technical details
Product colour
Black
Mean time between failures (MTBF)
1213492 h
Firmware upgradeable
Yes
Rack mounting
Yes
Data transmission
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
20 Gbit/s
Forwarding rate
15 Mpps
Security
Authentication
Guest VLAN, MAC-based authentication
Security algorithms
SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
IEEE 802.1x, RADIUS
DHCP features
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Multicast features
Multicast support
Yes
Certificates
Certification
LVD, BSMI
FCC 15 A, CE EMC A, BSMI ENC
RoHS A
Memory
Packet buffer memory
1.5 MB
Internal memory
256 MB
Flash memory
32 MB
Design
Product colour
Black
Certification
LVD, BSMI
FCC 15 A, CE EMC A, BSMI ENC
RoHS A
Rack mounting
Yes
Power
Power consumption (max)
11 W
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
37.51 BTU/h
Weight & dimensions
Width
267 mm
Depth
162 mm
Height
44 mm
Weight
1.3 kg
Packaging data
Package width
375 mm
Package depth
235 mm
Package height
61 mm
Package weight
2.21 kg
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Cables included
AC
Zyxel GS2220-10-GB0101F 8-port GbE L2 Switch
