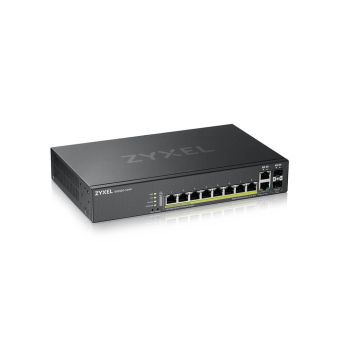

Zyxel GS2220-10HP-GB0101F 8 Ports Manageable Ethernet Switch - 4 Layer Supported Modular

Multicast support

Yes

Switch type

Managed

Web-based management

Yes

System event log

Yes

Quality of Service (QoS) support

Yes

Switch layer

L2

Configuring Location Settings (CLI)

Yes

Copper ethernet cabling technology

10BASE-TX- 1000BASE-T

Basic switching RJ-45 Ethernet ports quantity

10

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

2

IGMP snooping

Yes

Copper ethernet cabling technology

10BASE-TX- 1000BASE-T

Networking standards

IEEE 802.1D- IEEE 802.1Q- IEEE 802.1ab- IEEE 802.1p- IEEE 802.1s- IEEE 802.1w- IEEE 802.1x- IEEE 802.3ab- IEEE 802.3ad- IEEE 802.3af- IEEE 802.3at- IEEE 802.3az- IEEE 802.3u- IEEE 802.3x- IEEE 802.3z

VLAN support

Yes

Spanning tree protocol

Yes

Rate limiting

Yes

Link aggregation

Yes

Flow control support

Yes

Broadcast storm control

Yes

10G support

No

Virtual LAN features

Port-based VLAN- Private VLAN- Protocol-based VLAN- Voice VLAN

VLAN support

Yes

Virtual LAN features

Port-based VLAN- Private VLAN- Protocol-based VLAN- Voice VLAN

Packet buffer memory

1.5 MB

Noise level

41 dB

Mean time between failures (MTBF)

587477 h

Internal memory

256 MB

Flash memory

32 MB

Firmware upgradeable

Yes

Harmonized System (HS) code

85176990

Product colour

Black

Noise level

41 dB

Mean time between failures (MTBF)

587477 h

Firmware upgradeable

Yes

Rack mounting

Yes

Packet buffer memory

1.5 MB

MAC address table

16000 entries

Switching capacity

20 Gbit/s

Forwarding rate

15 Mpps

Authentication

Guest VLAN- MAC-based authentication

Security algorithms

SNMP- SNMPv2- SNMPv3- SSH-2- SSL/TLS

MAC address filtering

Yes

IGMP snooping

Yes

Access Control List (ACL)

Yes

Authentication type

IEEE 802.1x- RADIUS

DHCP features

DHCP client- DHCP relay- DHCP snooping- DHCPv6 client- DHCPv6 relay

Multicast support

Yes

Certification

LVD- BSMI FCC 15 A- CE EMC A- BSMI ENC RoHS A

Packet buffer memory

1.5 MB

Internal memory

256 MB

Flash memory

32 MB

Product colour

Black

Certification

LVD- BSMI FCC 15 A- CE EMC A- BSMI ENC RoHS A

Rack mounting

Yes

Power consumption (max)

210.8 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Total Power over Ethernet (PoE) budget

180 W

Power over Ethernet (PoE) ports quantity

8

Power over Ethernet (PoE)

Yes

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

10 - 95%

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 95%

Heat dissipation

718.828 BTU/h

Width

267 mm

Depth

162 mm

Height

44 mm

Weight

1.8 kg

Package width

375 mm

Package depth

235 mm

Package height

61 mm

Package weight

2.7 kg

Cables included

AC

Harmonized System (HS) code

85176990

Cables included

AC
