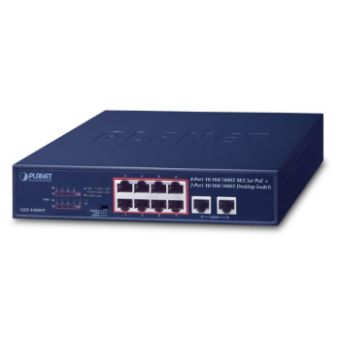

Cablenet 8 Port 10/100/1000 Switch 8 Port 802.3at 120w PoE+ 2p 10/100/1000
In Stock
|
Call For Price
(0808 189 1246)
Virtual LAN features
VLAN support
Yes
Performance
Auto-negotiation
Yes
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Blue
Housing material
Metal
Rack mounting
Yes
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
10
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
VLAN support
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Data transmission
Throughput
13.4 Mpps
MAC address table
2000 entries
Switching capacity
20 Gbit/s
Store-and-forward
Yes
Certificates
Certification
CE, FCC
Design
Form factor
1U
Product colour
Blue
LED indicators
Yes
Housing material
Metal
Certification
CE, FCC
Rack mounting
Yes
Number of fans
1 fan(s)
Indication
LED indicators
Yes
Power
Power consumption (max)
124 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2.5 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
423.1 BTU/h
Weight & dimensions
Width
220 mm
Depth
150 mm
Height
43 mm
Weight
1.21 kg
Cablenet 8 Port 10/100/1000 Switch 8 Port 802.3at 120w PoE+ 2p 10/100/1000
