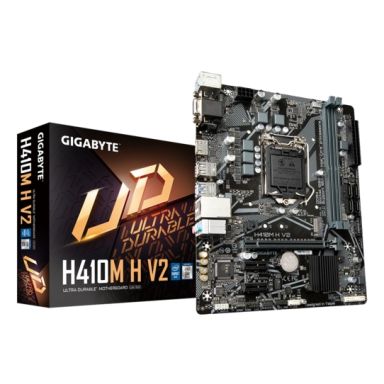

Gigabyte H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
In Stock
|
$56.10
$67.32 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
1
Total number of SATA connectors
4
Front panel connector
Yes
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Power fan connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H410
Supported processor sockets
LGA 1200 (Socket H5)
PC health monitoring
CPU, Fan, Temperature, Voltage
Motherboard form factor
micro ATX
Component for
PC
Total number of SATA connectors
4
Maximum internal memory supported by processor
64 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H410
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1200 (Socket H5)
PC health monitoring
CPU, Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
64 GB
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium®
Supported processor sockets
LGA 1200 (Socket H5)
Processor socket
LGA 1200 (Socket H5)
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2933 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory
64 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
2933 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
5
RAID support
Yes
Graphics
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H410
Supported processor sockets
LGA 1200 (Socket H5)
PC health monitoring
CPU, Fan, Temperature, Voltage
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Harmonized System (HS) code
84733020
Product colour
Brown
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x1 slots
2
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS button
Yes
Power
Power source type
ATX
Video
DirectX version
12.0
Packaging data
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
728 g
Software
Windows operating systems supported
Windows 10, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
cFosSpeed
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Harmonized System (HS) code
84733020
Weight & dimensions
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
728 g
Width
226 mm
Depth
185 mm
Packaging content
Bundled software
Norton Internet Security (OEM version)
cFosSpeed
Batteries included
Yes
Other features
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
728 g
Gigabyte H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
