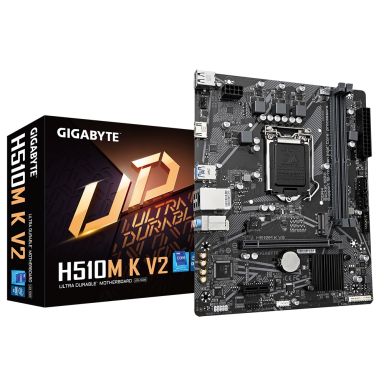

Gigabyte H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
In Stock
|
$55.46
$66.55 (Inc. VAT)
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H470 Express
Supported processor sockets
LGA 1200 (Socket H5)
Serial port headers
1
PC health monitoring
Fan, Temperature, Voltage
On-board graphics card
Yes
Cooling type
Active
Motherboard form factor
micro ATX
Component for
PC
Total number of SATA connectors
2
Maximum internal memory supported by processor
64 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
2
Supported storage drive types
SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H470 Express
Supported processor sockets
LGA 1200 (Socket H5)
PC health monitoring
Fan, Temperature, Voltage
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
64 GB
Compatible processor series
Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9
Supported processor sockets
LGA 1200 (Socket H5)
Maximum number of SMP processors
1
Processor socket
LGA 1200 (Socket H5)
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory
64 GB
Supported memory clock speed (max)
3200 MHz
Storage controllers
Number of HDDs supported
2
Supported storage drive types
SSD
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA
Number of storage drives supported
3
Graphics
On-board graphics card
Yes
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Graphics card family
Intel
Graphics card
HD Graphics
DirectX version
12.0
Internal I/O
Total number of SATA connectors
2
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Serial port headers
1
Power fan connector
Yes
Number of SATA III connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H470 Express
Supported processor sockets
LGA 1200 (Socket H5)
PC health monitoring
Fan, Temperature, Voltage
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Product colour
Brown
Expansion slots
Mini PCI Express slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
Graphics card family
Intel
Graphics card
HD Graphics
DirectX version
12.0
Packaging data
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
683 g
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
683 g
Width
226 mm
Depth
185 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Other features
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
683 g
Gigabyte H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
