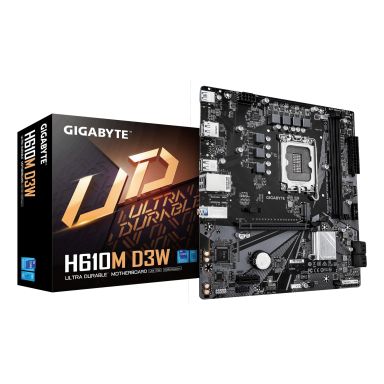

GIGABYTE H610M D3W Motherboard - Supports 14th Gen. Intel Core CPUs, 5+1+1 phases VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Number of M.2 (M) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel connector

Yes

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Serial port headers

1

Number of SATA III connectors

4

Number of chassis fan connectors

2

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Supported processor sockets

LGA 1700

Serial port headers

1

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Parallel processing technology support

Not supported

HDMI version

2.1

Cooling type

Passive

Motherboard form factor

micro ATX

Component for

PC

Warranty period

3 year(s)

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Supported processor sockets

LGA 1700

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Processor socket

LGA 1700

Number of memory slots

2

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

4400,4800,5200,5600 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

5600 MHz

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Number of storage drives supported

5

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

DirectX version

12.0

HDCP version

2.3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.2

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

Microphone in

Yes

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Realtek RTL8111H

Ethernet interface type

Gigabit Ethernet

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Supported processor sockets

LGA 1700

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Audio chip

Realtek ALC897

Product colour

Dark brown

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery capacity

200 mAh

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

ACPI version

5.0

System Management BIOS (SMBIOS) version

2.7

Desktop Management Interface (DMI) version

2.7

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

DirectX version

12.0

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

821 g

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Bundled software

Norton® Internet Security (OEM version)

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery capacity

200 mAh

Battery weight

3 g

Number of battery cells

1

Lithium weight per battery

0.07 g

Battery type

CR2032

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Height

35 mm

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

821 g

Weight

742 g

Width

244 mm

Depth

220 mm

Bundled software

Norton® Internet Security (OEM version)

Batteries included

Yes

Screws included

Yes

Height

35 mm

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

821 g

Weight

742 g
