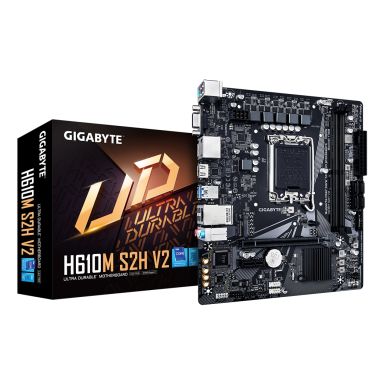

Gigabyte H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
In Stock
|
$75.41
$90.49 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H610 Express
Supported processor sockets
LGA 1700
Serial port headers
1
PC health monitoring
Fan, LED, Temperature, Voltage, Water cooling
On-board graphics card
Yes
Cooling type
Active
Motherboard form factor
micro ATX
Component for
PC
Maximum internal memory supported by processor
96 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H610 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, LED, Temperature, Voltage, Water cooling
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum internal memory supported by processor
96 GB
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
5600, 5200, 4800, 4400 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Maximum internal memory
96 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
5600 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
Number of storage drives supported
1
Graphics
On-board graphics card
Yes
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Graphics card family
Intel
Graphics card
HD Graphics
On-board graphics card model
Intel® HD Graphics
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H610 Express
Supported processor sockets
LGA 1700
PC health monitoring
Fan, LED, Temperature, Voltage, Water cooling
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
Product colour
Black
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 slots
1
PCI Express x1 slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
Graphics card family
Intel
Graphics card
HD Graphics
Packaging data
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
690 g
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
690 g
Width
230 mm
Depth
215 mm
Packaging content
Cables included
SATA
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Other features
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
690 g
Supported DIMM module capacities
8GB, 16GB
Gigabyte H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
