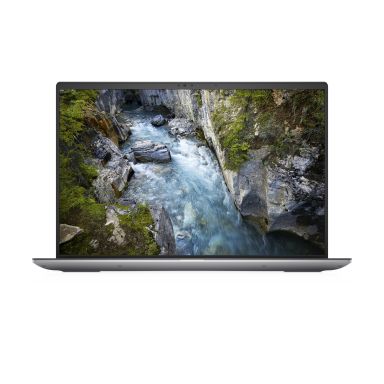

DELL Precision 5680 Intel® Core™ i9 i9-13900H Mobile workstation 40.6 cm (16") Touchscreen WQUXGA 32 GB LPDDR5-SDRAM 1 TB SSD NVIDIA RTX 3500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
In Stock
|
Call For Price
(0808 189 1246)
Design
Colour name
Titan Gray
Product type
Mobile workstation
Market positioning
Business
Housing material
Aluminium
Form factor
Clamshell
Product colour
Grey
Intel® vPro Platform Eligibility
Yes
Display
HD type
WQUXGA
Pixel density
283 ppi
Panel type
OLED
LED backlight
Yes
Display brightness
400 cd/m²
Contrast ratio (typical)
100000:1
Touchscreen
Yes
Display resolution
3840 x 2400 pixels
Display diagonal
40.6 cm (16")
Maximum refresh rate
60 Hz
RGB colour space
DCI-P3
Colour gamut
100%
Native aspect ratio
16:10
Processor
Processor generation
13th gen Intel® Core i9
Configurable TDP-down
35 W
Processor cache type
Smart Cache
Processor cache
24 MB
Processor model
i9-13900H
Processor boost frequency
5.4 GHz
Processor cores
14
Processor manufacturer
Intel
Processor family
Intel® Core i9
Efficient-core boost frequency
4.1 GHz
Performance-core boost frequency
5.4 GHz
Memory
Memory form factor
On-board
Internal memory
32 GB
Internal memory type
LPDDR5-SDRAM
Memory clock speed
6000 MHz
Maximum internal memory
32 GB
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Total storage capacity
1 TB
Total SSDs capacity
1 TB
SSD performance class
40
NVMe
Yes
Graphics
Discrete graphics card
Yes
Discrete graphics card memory
12 GB
On-board graphics card
Yes
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
NVIDIA RTX 3500 Ada
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
Audio
Audio chip
Realtek ALC711-VD
Number of microphones
2
Number of built-in speakers
4
Speaker power
8 W
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
0.9 MP
Front camera resolution
1920 x 1080 pixels
Video capturing speed
30 fps
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Ethernet LAN
No
Bluetooth
Yes
Wi-Fi data rate (max)
2400 Mbit/s
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
HDMI ports quantity
1
HDMI version
2.0b
Combo headphone/mic port
Yes
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Performance
Accelerometer
Yes
Keyboard
Pointing device
Trackpad
Numeric keypad
No
Keyboard number of keys
80
Keyboard backlit
Yes
Keyboard language
UK English
Software
Operating system language
Multilingual
Operating system architecture
64-bit
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system installed
Windows 11 Pro
Technical details
Market positioning
Business
Housing material
Aluminium
Form factor
Clamshell
Product colour
Grey
Discrete graphics card memory
12 GB
Sustainability certificates
ENERGY STAR, EPEAT Gold
Processor special features
CPU configuration (max)
1
Intel® vPro Platform Eligibility
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery capacity
99.5 Wh
Battery recharge time
3 h
Battery voltage
11.55 V
Fast charging
Yes
Battery weight
363 g
Power
AC adapter power
165 W
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
USB charging voltage
20,5,9,15 V
Security
Cable lock slot type
Wedge
Trusted Platform Module (TPM)
Yes
Cable lock slot
Yes
Trusted Platform Module (TPM) version
2.0
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Sustainability
Sustainability certificates
ENERGY STAR, EPEAT Gold
Total carbon footprint
475 kg of CO2e
Weight & dimensions
Width
353.7 mm
Depth
240.3 mm
Height (front)
2.62 cm
Height (rear)
2.62 cm
Weight
1.91 kg
Packaging data
Cables included
AC
Other features
Wi-Fi data rate (max)
2400 Mbit/s
WLAN controller model
Intel Wi-Fi 6E AX211
On-board graphics card
Yes
Sensors
Accelerometer
Yes
Carbon footprint
Total carbon footprint
475 kg of CO2e
Total carbon emissions (w/o Use phase)
426 kg of CO2e
Total carbon emissions (Standard deviation)
92 kg of CO2e
PAIA version
1.3.2
Carbon emissions (Energy Usage)
49 kg of CO2e
Carbon emissions (Manufacturing)
398 kg of CO2e
Carbon emissions (Logistics)
25 kg of CO2e
Carbon emissions (End-of-Life)
3 kg of CO2e
Packaging content
Cables included
AC
DELL Precision 5680 Intel® Core™ i9 i9-13900H Mobile workstation 40.6 cm (16") Touchscreen WQUXGA 32 GB LPDDR5-SDRAM 1 TB SSD NVIDIA RTX 3500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
